Dell 2161DS - Scanning Your System

Analog Port Operation 53

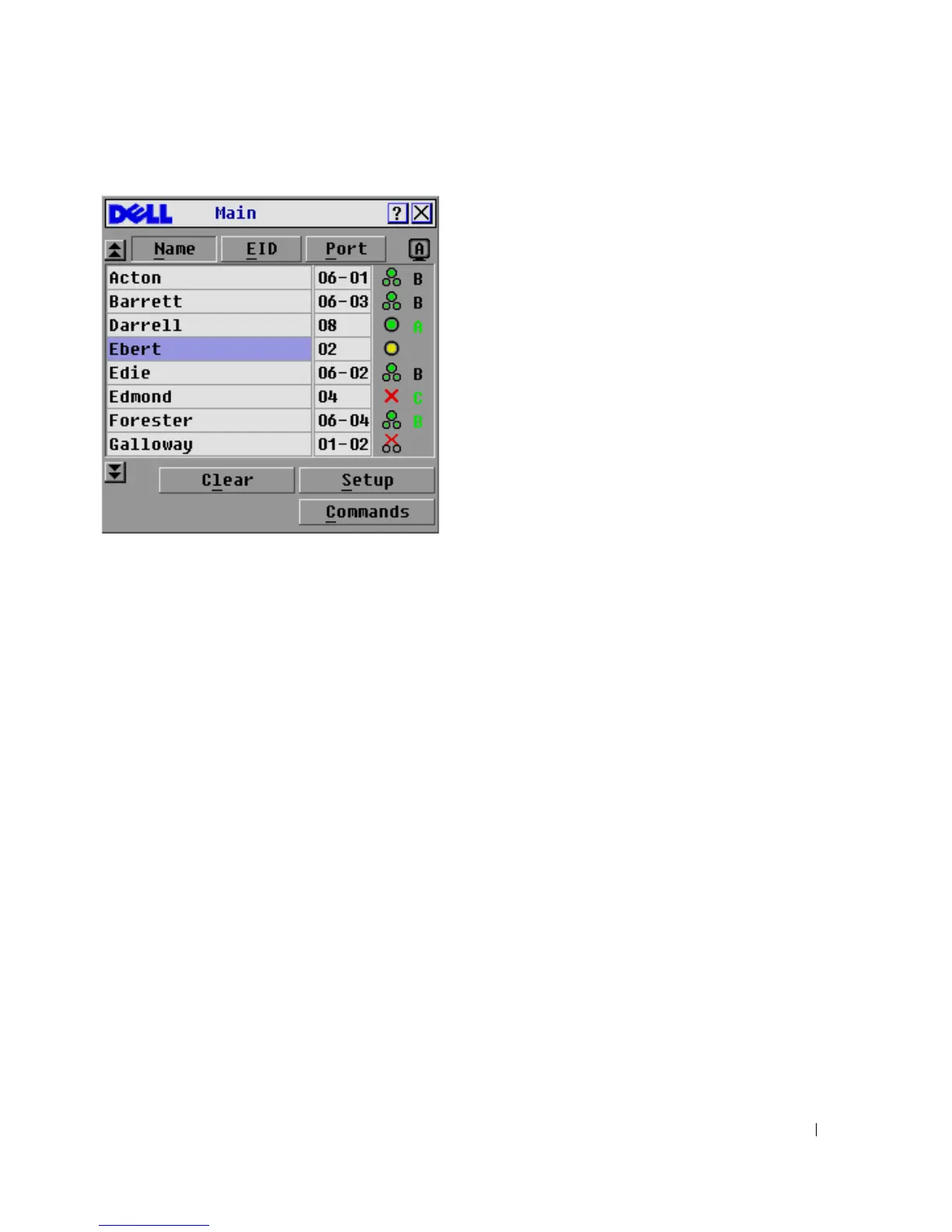

Figure 3-34. Main Dialog Box
Scanning Your System
In scan mode, the 2161DS Console Switch automatically scans from port to port (server to server).
You can scan up to 16 servers by specifying which servers you want to scan and the number of
seconds that each server will display. You can choose to display the server's name or EID number by
pressing the appropriate button.
To add servers to the
Scan list:
1 If OSCAR is not open, press <Print Screen>. The Main dialog box will appear.
2 Click Setup - Scan . The Scan dialog box appears.
