Installation 25

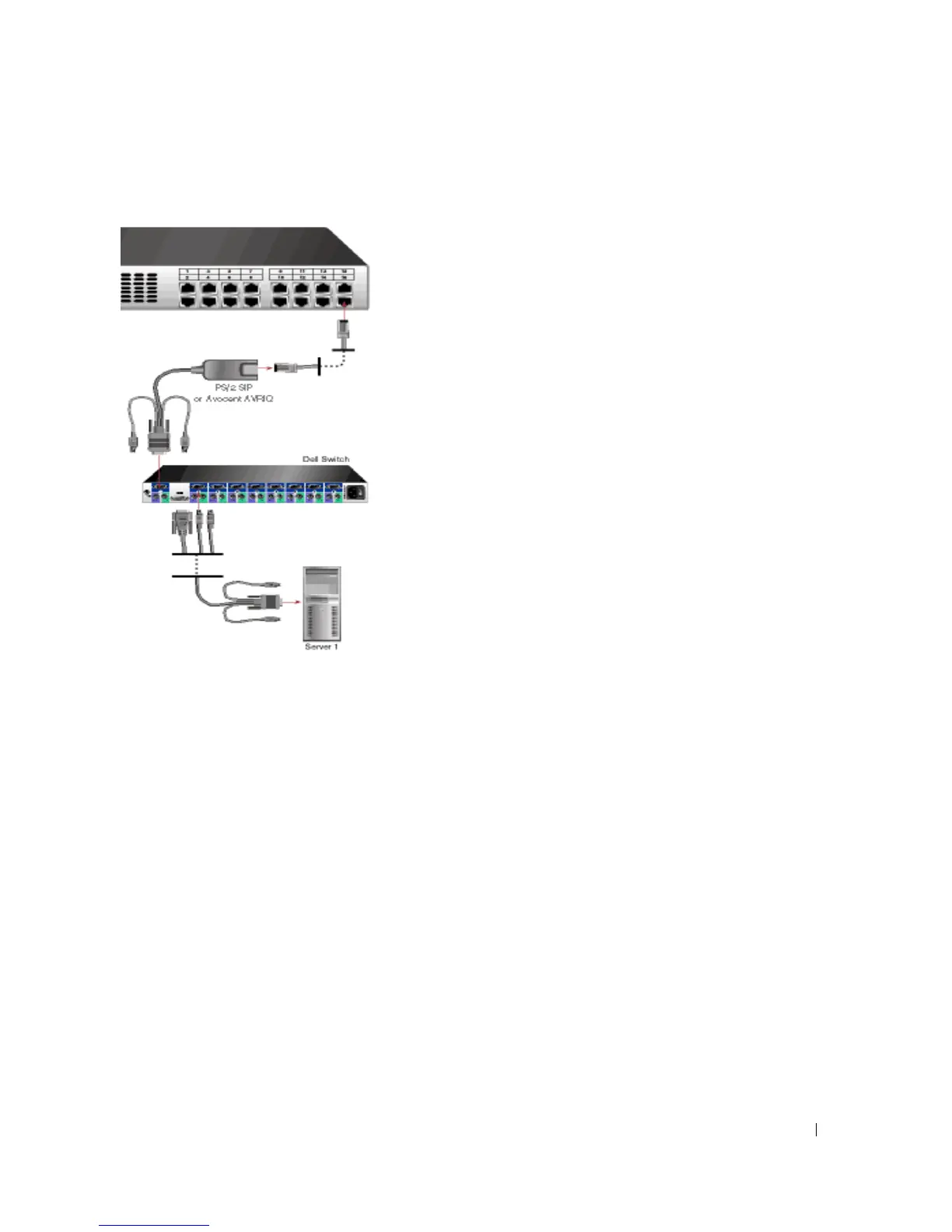

Figure 2-9. 2161DS Console Switch Configuration With a Cascade Switch
Connecting to the Network
To connect the network and power up your 2161DS Console Switch:
1
Connect your network cable to the LAN port on the rear of the 2161DS Console Switch to
your network.
2
Power up all attached systems.
To connect the analog port monitor and PS/2 keyboard and mouse:
Attach your monitor and PS/2 keyboard and mouse cable connectors to the appropriate ports on
the back of your 2161DS Console Switch unit.
