Dell 2161DS - Page 54

54 Analog Port Operation
www.dell.com | support.dell.com

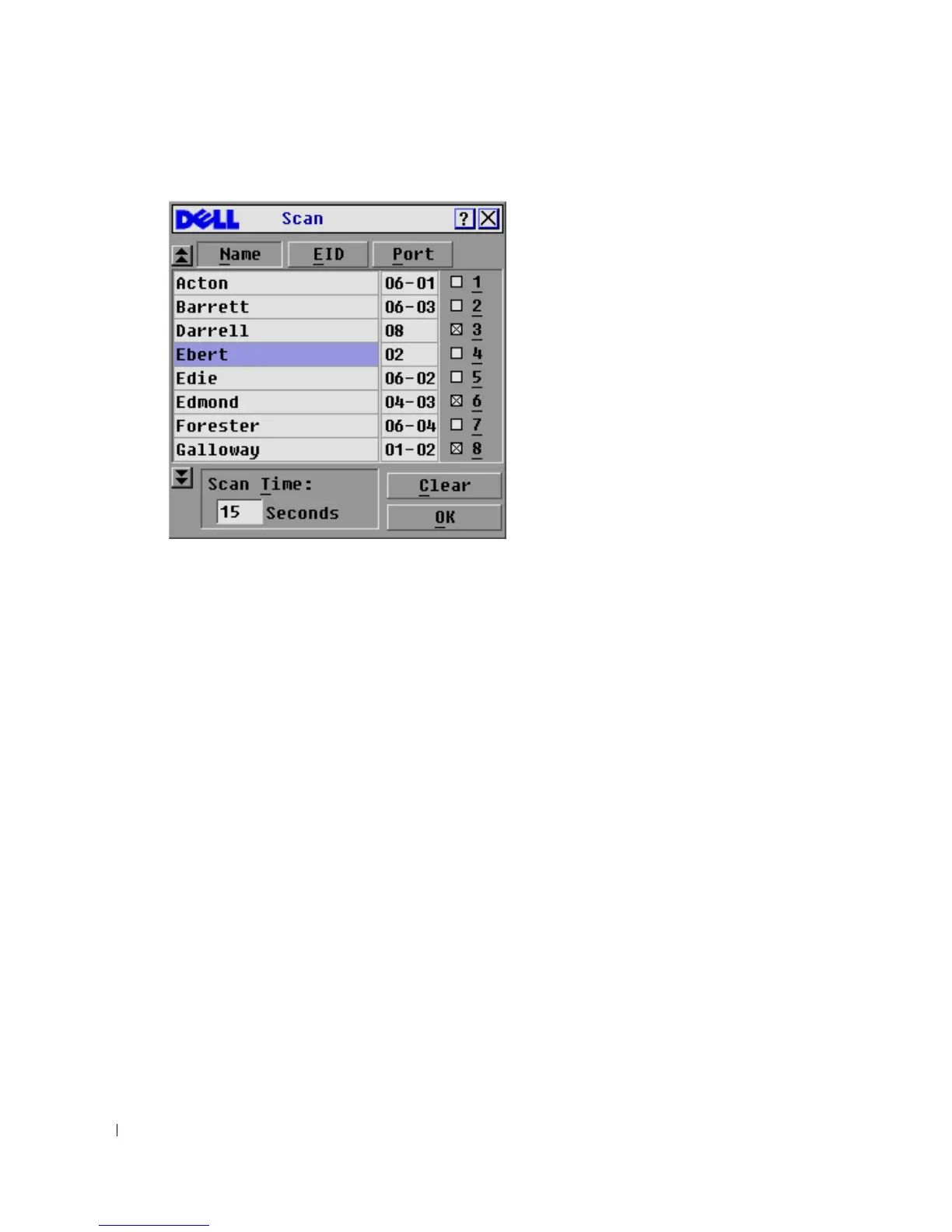

Figure 3-35. Scan Dialog Box
3 The dialog box contains a listing of all the servers attached to your unit. Click to enable the
check box next to the servers you wish to scan.
-or-
Double-click on a server's name or port.
-or-
Press <Alt>+ the number of the server you wish to scan. You can select up to 16 servers.
4 In the Scan Time box, type the number of seconds (from 3 to 99) of desired time before the
scan moves to the next server in the sequence.
5 Click OK .
To remove a server from the
Scan list:
1 In the Scan dialog box, click to disable the check box next to a server to be removed.
-or-
Double-click on a server's name or port.
-or-
Click the
Clear button to remove all servers from the Scan list
2 Click OK .
To start the scan mode:
1 Press <Print Screen>. The Main dialog box will appear.
2 Click Commands . The Command dialog box appears.
