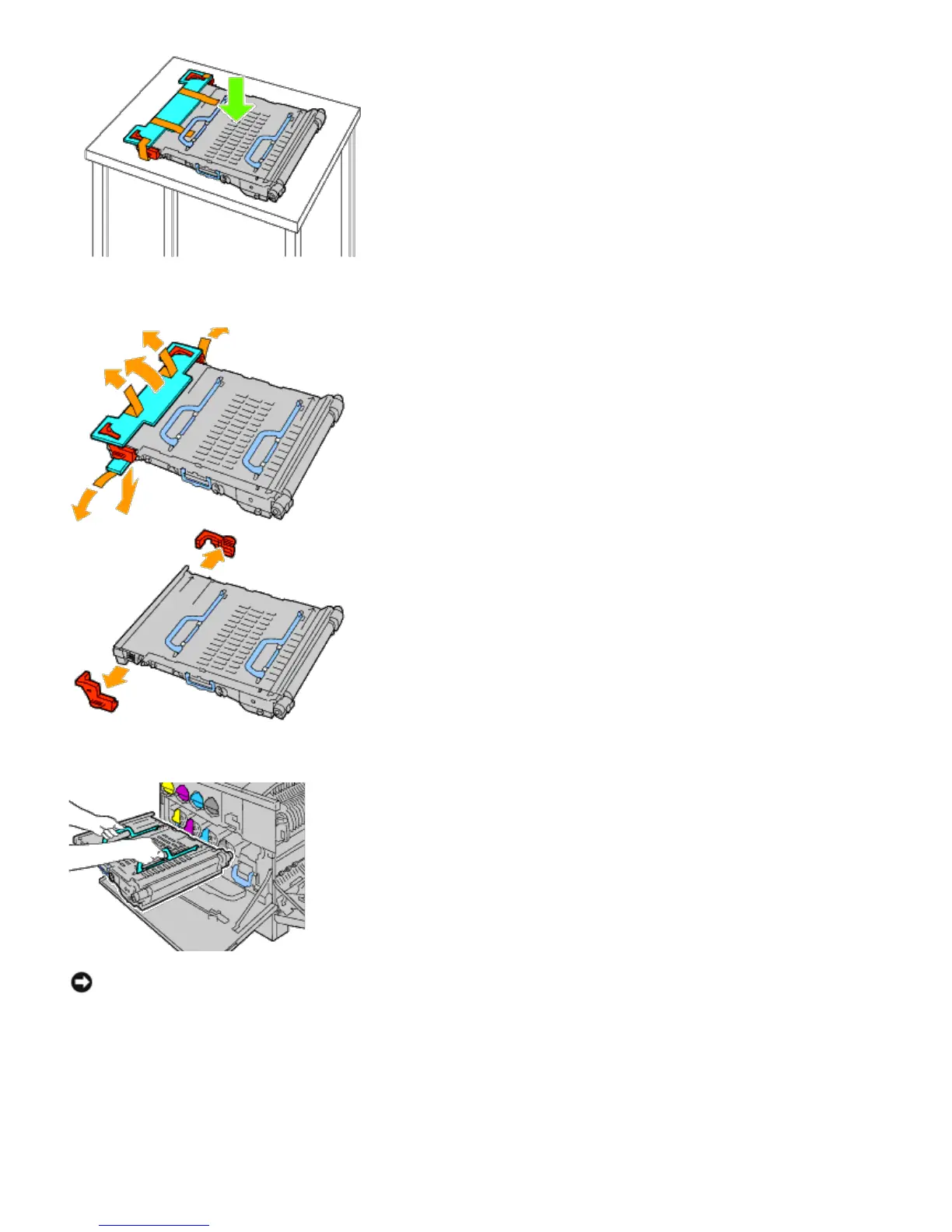

2. Remove the protective parts shown in the illustration.
3. Grasp the handles on top of the belt unit.
NOTICE: Do not hold the sides of the belt unit. It may degrade print quality.
4. Align the arrows on the belt unit with the arrows on the printer.
