Removing a Hard Disk

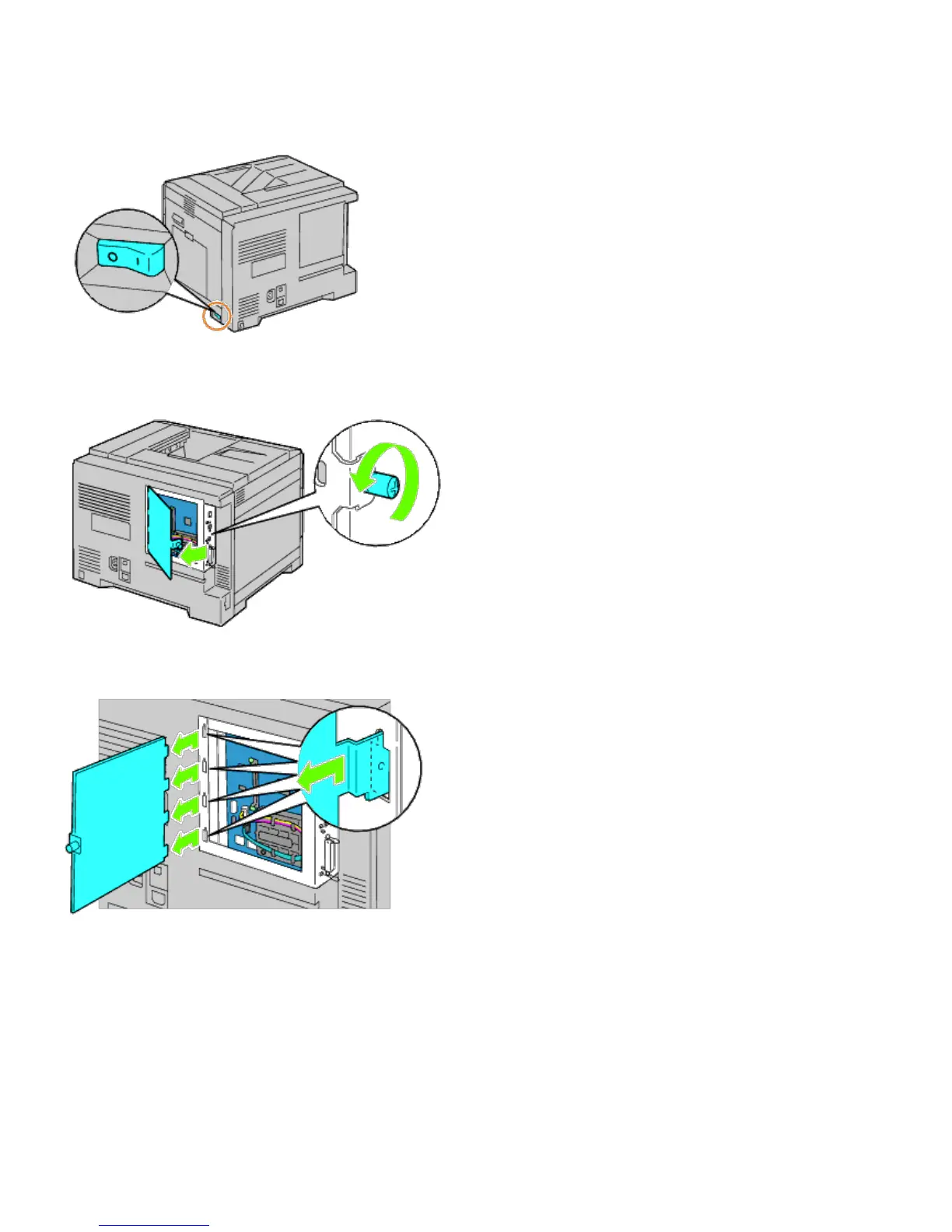

1. Ensure that the printer is turned off.
2. Rotate the screw counterclockwise on the metal casing to open the cover.
3. Remove the control board cover.
4. Remove the hard disk cables from the connectors of the control board.
