Disassembly and reassembly

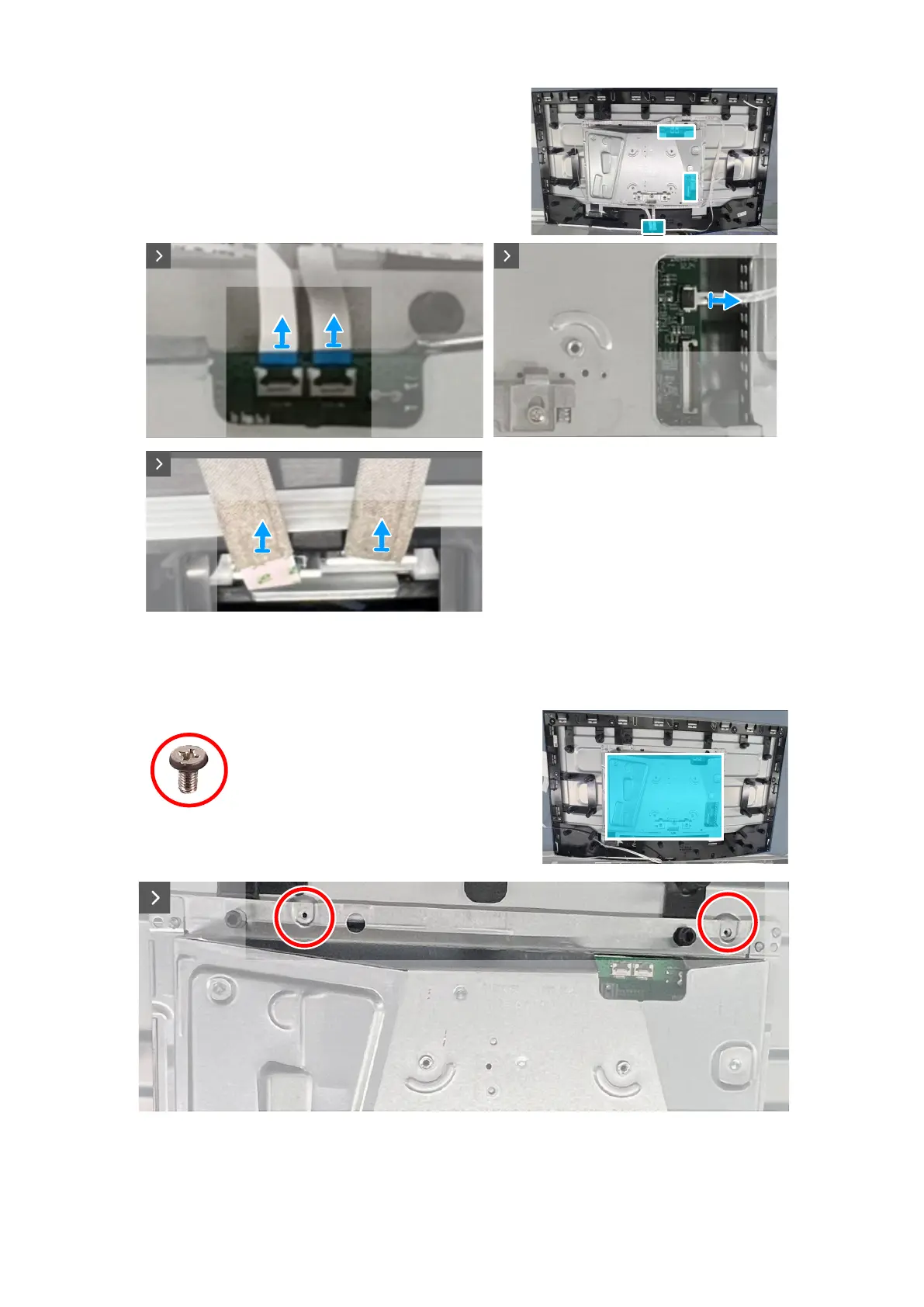

Figure 11. Removing the metal shield
4. Remove the four screws (M3X4) that secure the metal shield to the middle frame.
4x
M3x4
Figure 12. Removing the metal shield
