13
Disassembly and reassembly

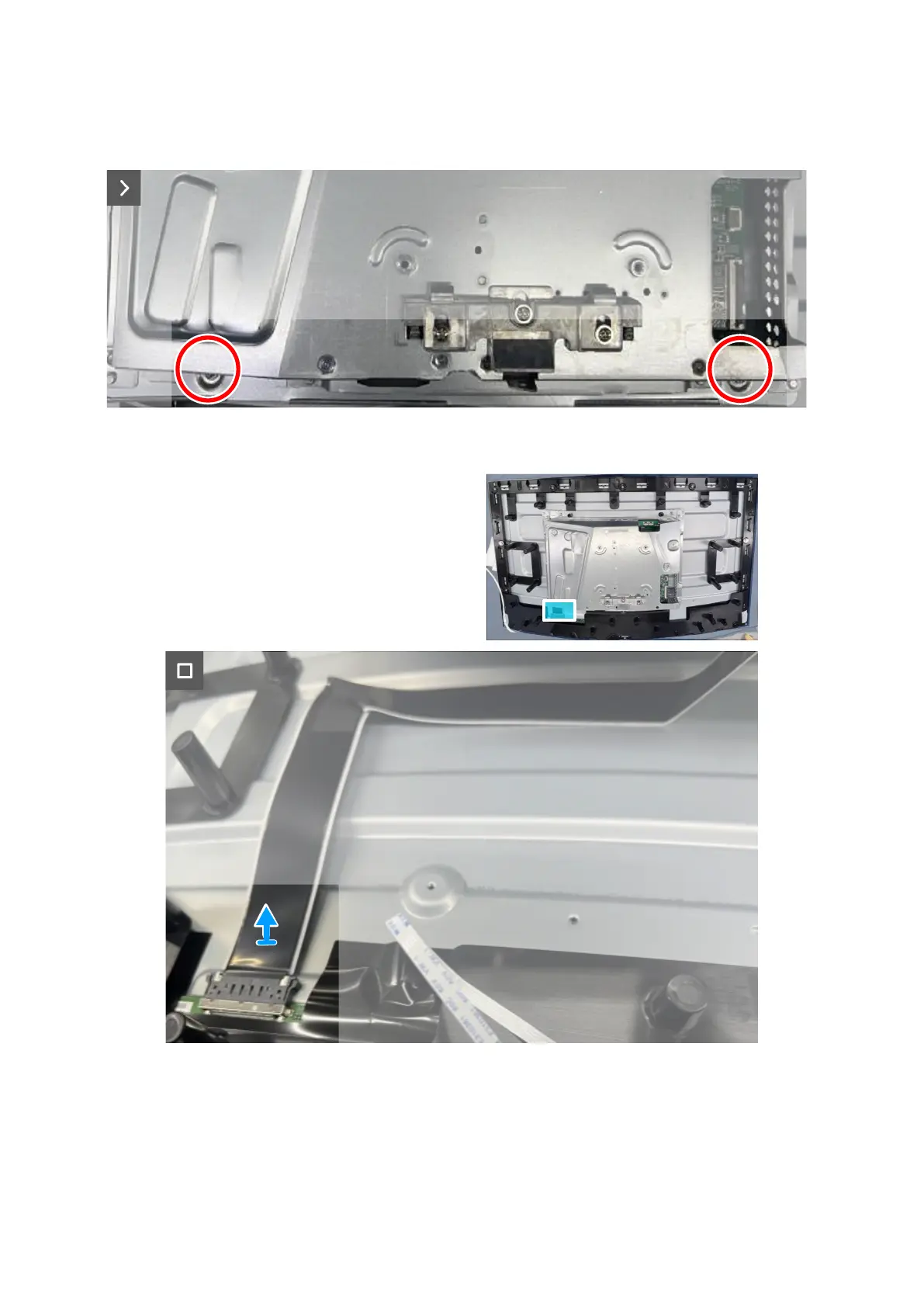

Figure 13. Removing the metal shield
5. Disconnect the display cable from the connector on the display panel.
Figure 14. Removing the metal shield
