Steps
1. Remove the two screws (M2.5x9) that secure the base cover to the palm-rest assembly.
2. Loosen the six captive screws.
3. Using your fingertips, pry the base cover from the gap around the screw holes to release clips on the base cover from the palm-
rest assembly.
4. Work on the sides to pry open the base cover.
5. Lift the base cover off the palm-rest assembly.

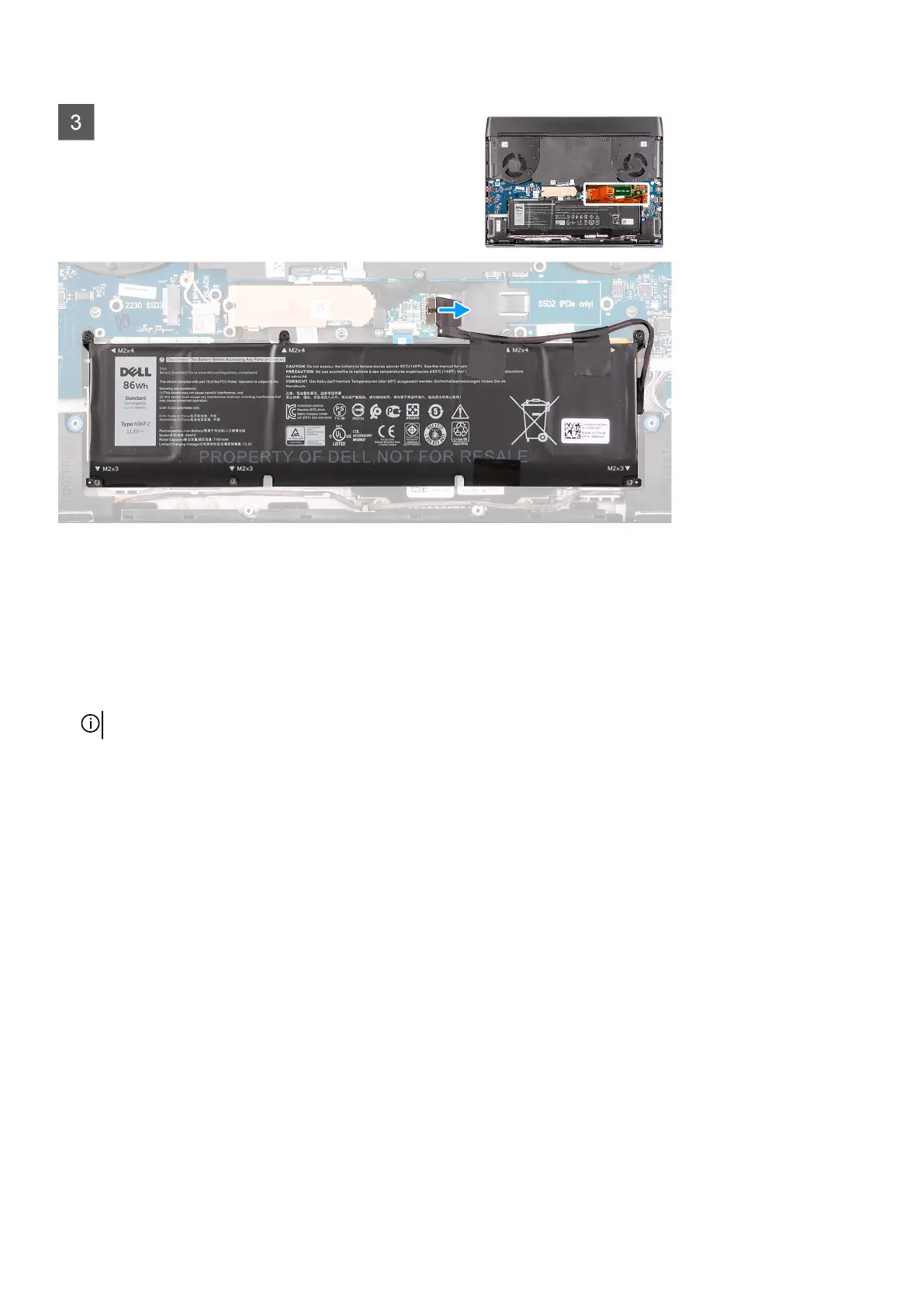

6. Disconnect the battery from the system board.
NOTE: Disconnect the battery cable only when you are continuing to remove other components from your computer.
7. Press and hold the power button for 5 seconds to ground the computer and drain the flea power.
Installing the base cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the base cover and provides a visual representation of the installation procedure.
12
