Steps

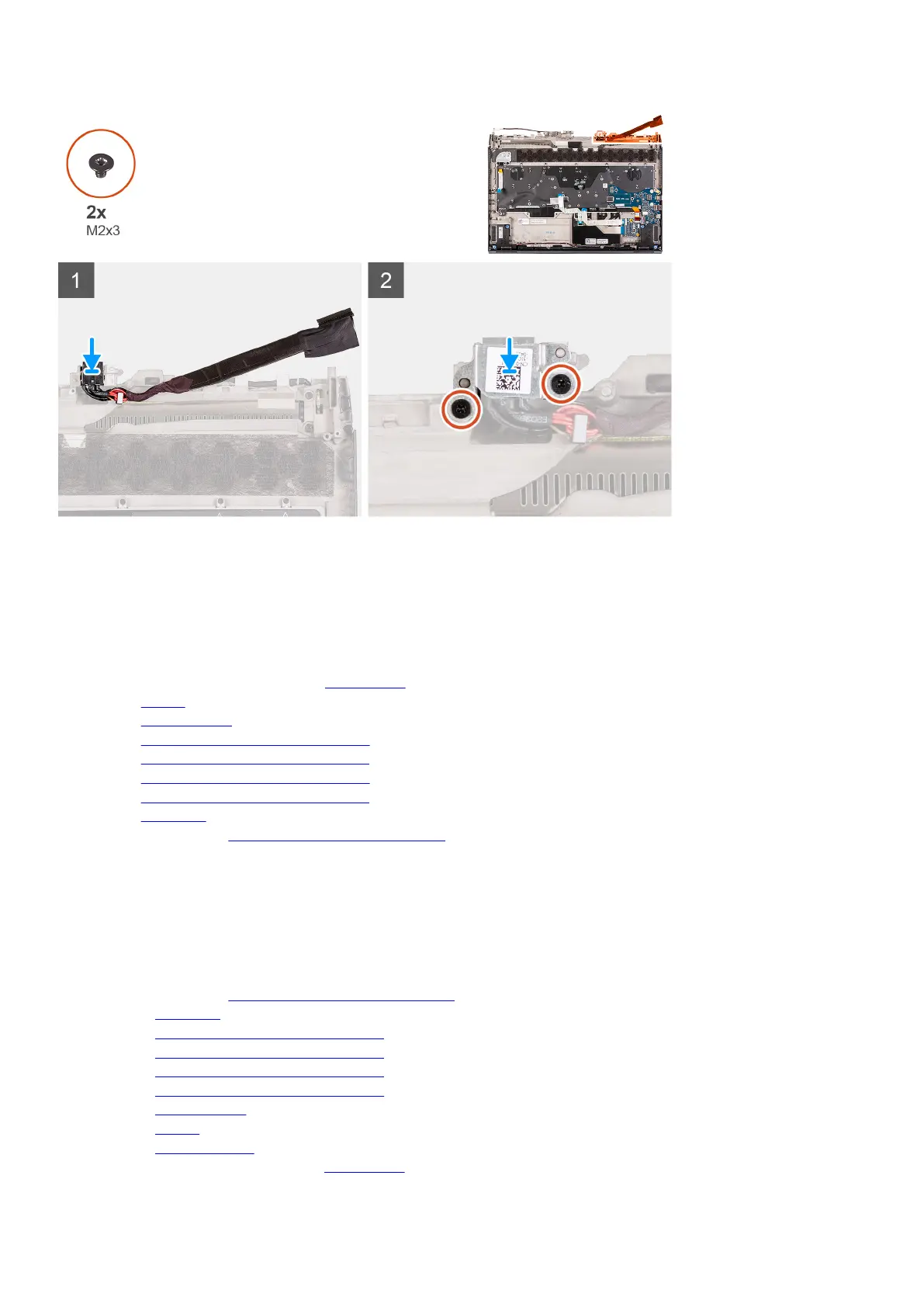

1. Place the power-adapter port into the slot on the palm-rest assembly.
2. Place the power-adapter port bracket on the power-adapter port.
3. Replace the two screws (M2x3) that secure the power-adapter port bracket to the palm-rest assembly.
Next steps
1. Follow step 3 to step 22 in installing the
system board.
2. Install the battery.
3. Install the rear I/O-cover.
4. Install the 2280 solid-state drive in M.2 slot two, if installed.
5. Install the 2230 solid-state drive in M.2 slot two, if installed.
6. Install the
2280 solid-state drive in M.2 slot one, if installed.
7. Install the 2230 solid-state drive in M.2 slot one, if installed.
8. Install the base cover.
9. Follow the procedure in After working inside your computer.
Power-button assembly
Removing the power-button assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the 2230 solid-state drive in M.2 slot one, if installed.
4. Remove the 2280 solid-state drive in M.2 slot one, if installed.
5. Remove the 2230 solid-state drive in M.2 slot two, if installed.
6. Remove the
2280 solid-state drive in M.2 slot two, if installed.
7. Remove the rear I/O-cover.
8. Remove the battery.
9. Remove the right I/O-board.
10.Follow step 1 to step 21 in removing the system board.
