Steps
1. Peel and remove the Mylar that covers the system board.
2. Disconnect and peel the Tron-light cable from the system board.
CAUTION: To prevent damaging your computer, ensure that the Tron-light cable has been disconnected from the
system board before removing the rear I/O-cover.
3. Remove the two screws (M2.5x5) that secure the rear I/O-cover to the palm-rest assembly.
4. Remove the two screws (M2x4.5) that secure the rear I/O-cover to the palm-rest assembly.
5. Firmly grasp the sides of your computer with both hands and push the rubber feet on the rear I/O-cover outwards with your
thumbs to release the rear I/O-cover from the palm-rest assembly.
6. Lift the rear I/O-cover from the palm-rest assembly.
Installing the rear I/O-cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

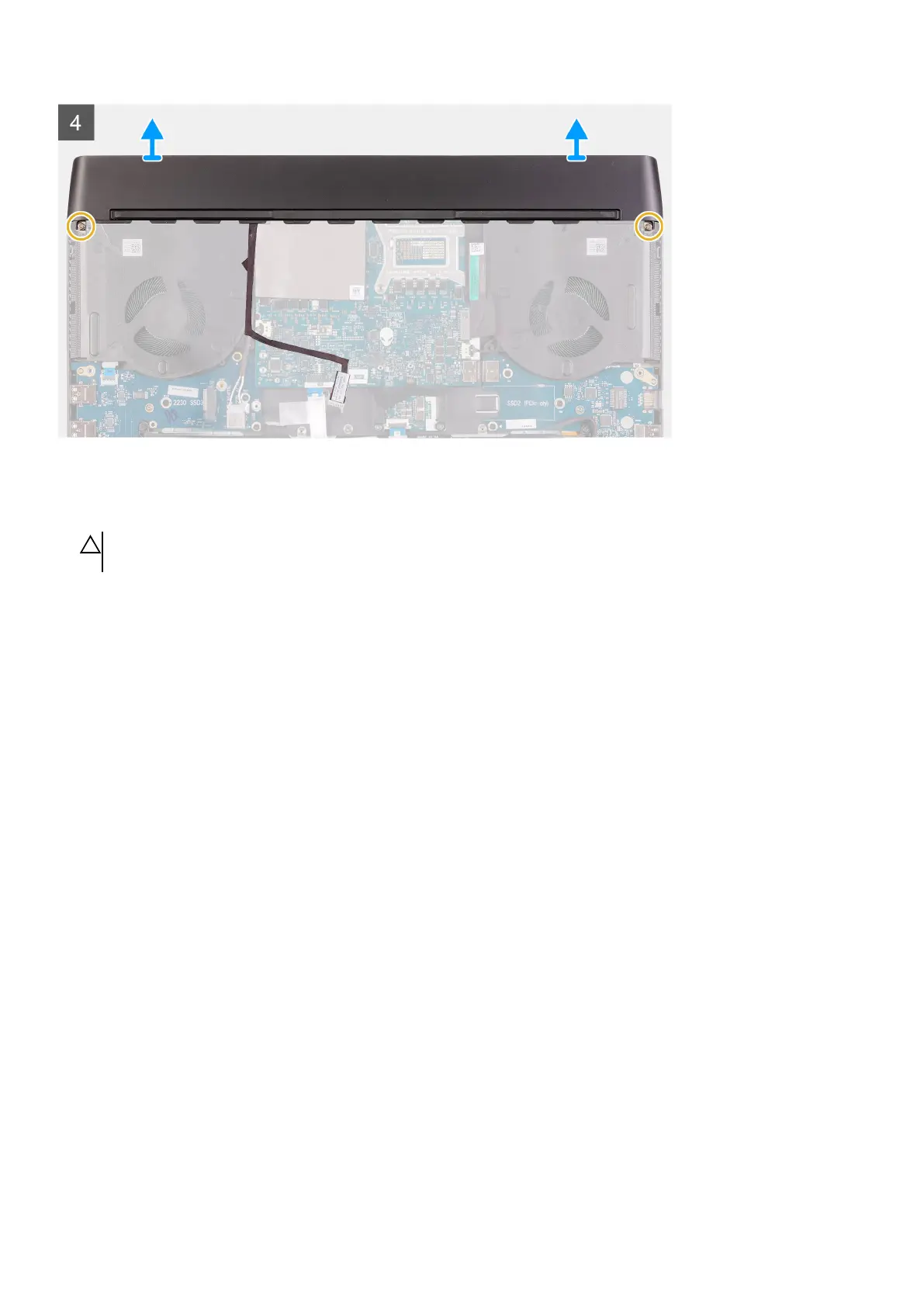

The following image indicates the location of the rear I/O-cover and provides a visual representation of the installation procedure.
