Steps

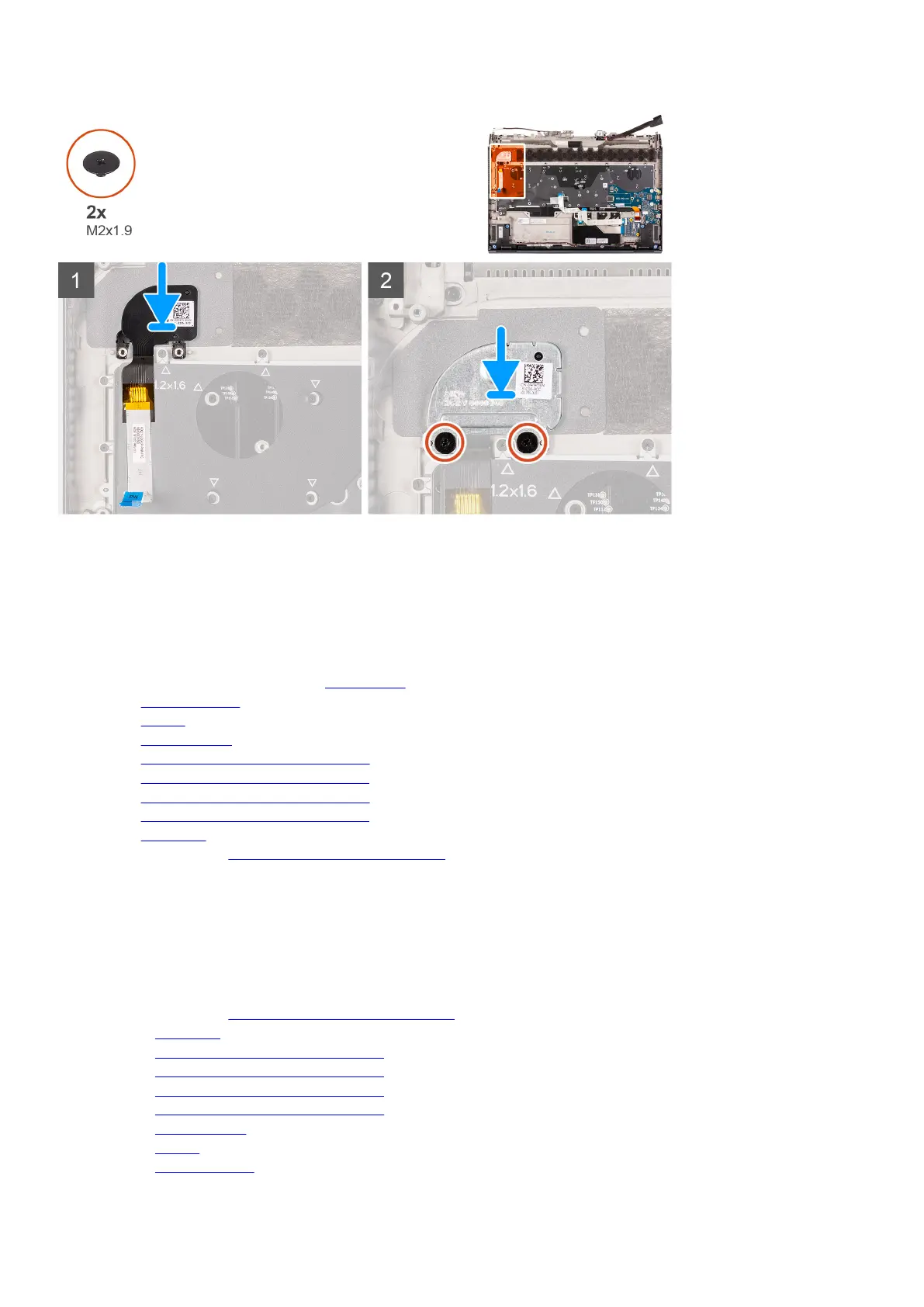

1. Place the power-button assembly and its cable in the slot on the palm-rest assembly.
2. Place the power-button bracket on the power-button assembly.
3. Replace the two (M2x1.9) screws that secure the power-button bracket to the palm-rest assembly.
Next steps
1. Follow step 3 to step 22 in installing the
system board.
2. Install the right I/O-board.
3. Install the battery.
4. Install the rear I/O-cover.
5. Install the 2280 solid-state drive in M.2 slot two, if installed.
6. Install the
2230 solid-state drive in M.2 slot two, if installed.
7. Install the 2280 solid-state drive in M.2 slot one, if installed.
8. Install the 2230 solid-state drive in M.2 slot one, if installed.
9. Install the base cover.
10.Follow the procedure in
After working inside your computer.
Keyboard
Removing the keyboard
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the
2230 solid-state drive in M.2 slot one, if installed.
4. Remove the 2280 solid-state drive in M.2 slot one, if installed.
5. Remove the 2230 solid-state drive in M.2 slot two, if installed.
6. Remove the 2280 solid-state drive in M.2 slot two, if installed.
7. Remove the rear I/O-cover.
8. Remove the battery.
9. Remove the right I/O-board.
