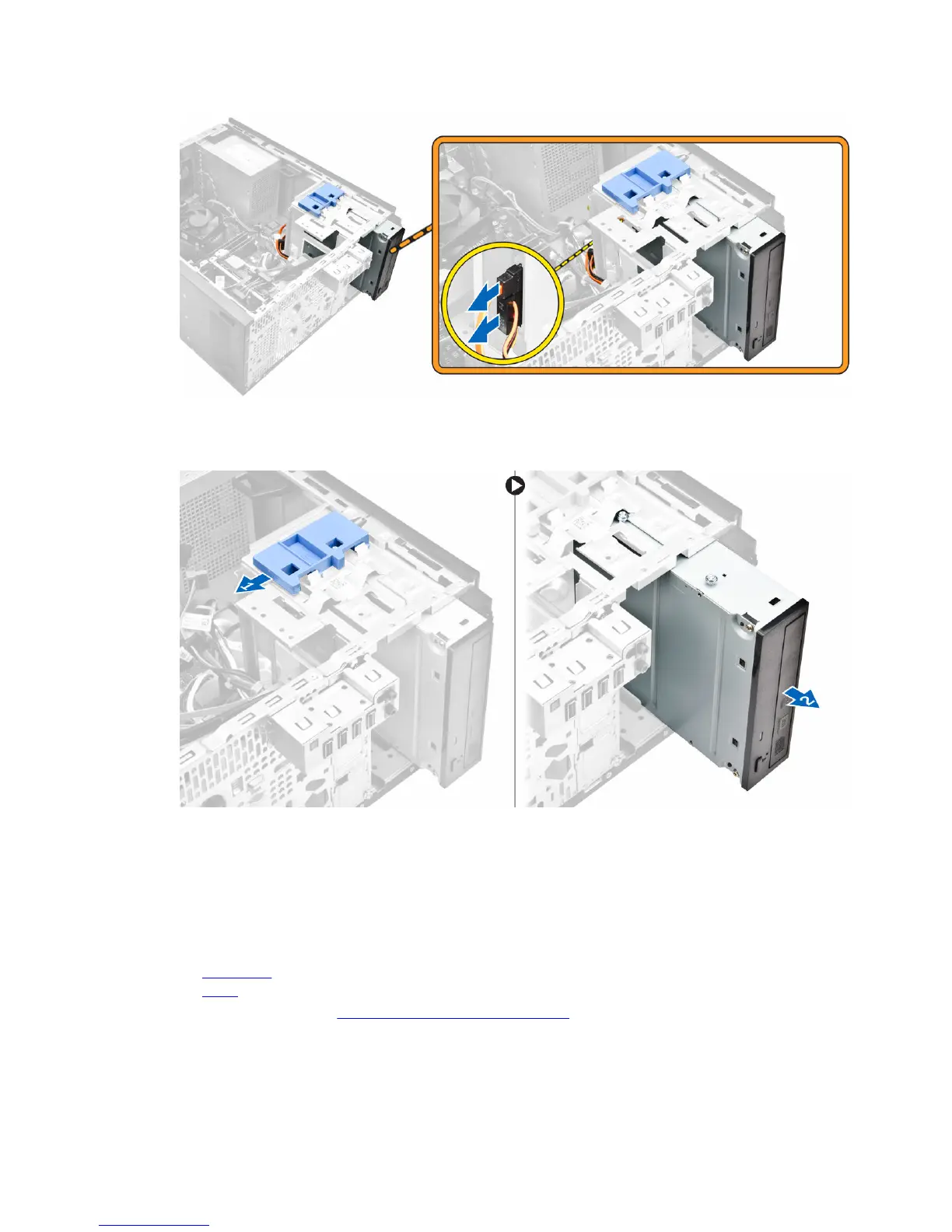

4. To remove the optical drive:
a. Slide and hold the optical drive latch to unlock the optical drive [1].
b. Slide the optical drive from the computer [2].
5. Repeat steps 3 and 4 to remove the second optical drive (if available).
Installing the optical drive
1. Slide the optical drive into the drive bay from the front of the computer until it is secured.
2. Connect the data cable and power cable to the optical drive.
3. Install:
a. front bezel
b. cover
4. Follow the procedure in After Working Inside Your Computer.
