Dell E310dw - Page 158

158 Routine Maintenance

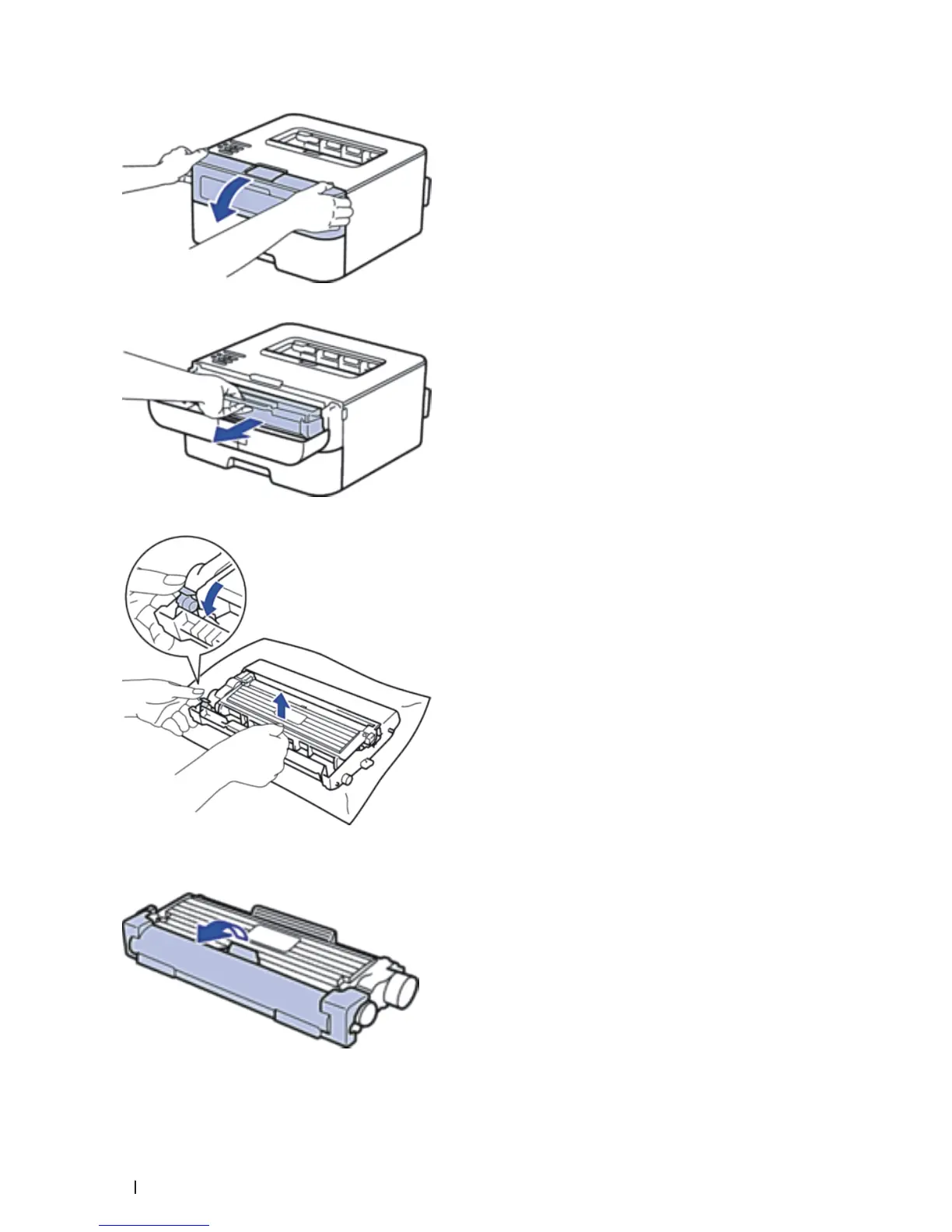

3. Remove the toner cartridge and drum unit assembly from the machine.
4. Push down the lock lever and take the toner cartridge out of the drum unit.
5. Unpack the new toner cartridge.
6. Remove the protective cover.
