• #4 nut driver
• Torx #T30 screwdriver
• Wrist grounding strap
• ESD mat
Inside the enclosure
CAUTION: This system must be operated with the system cover installed to ensure proper cooling.

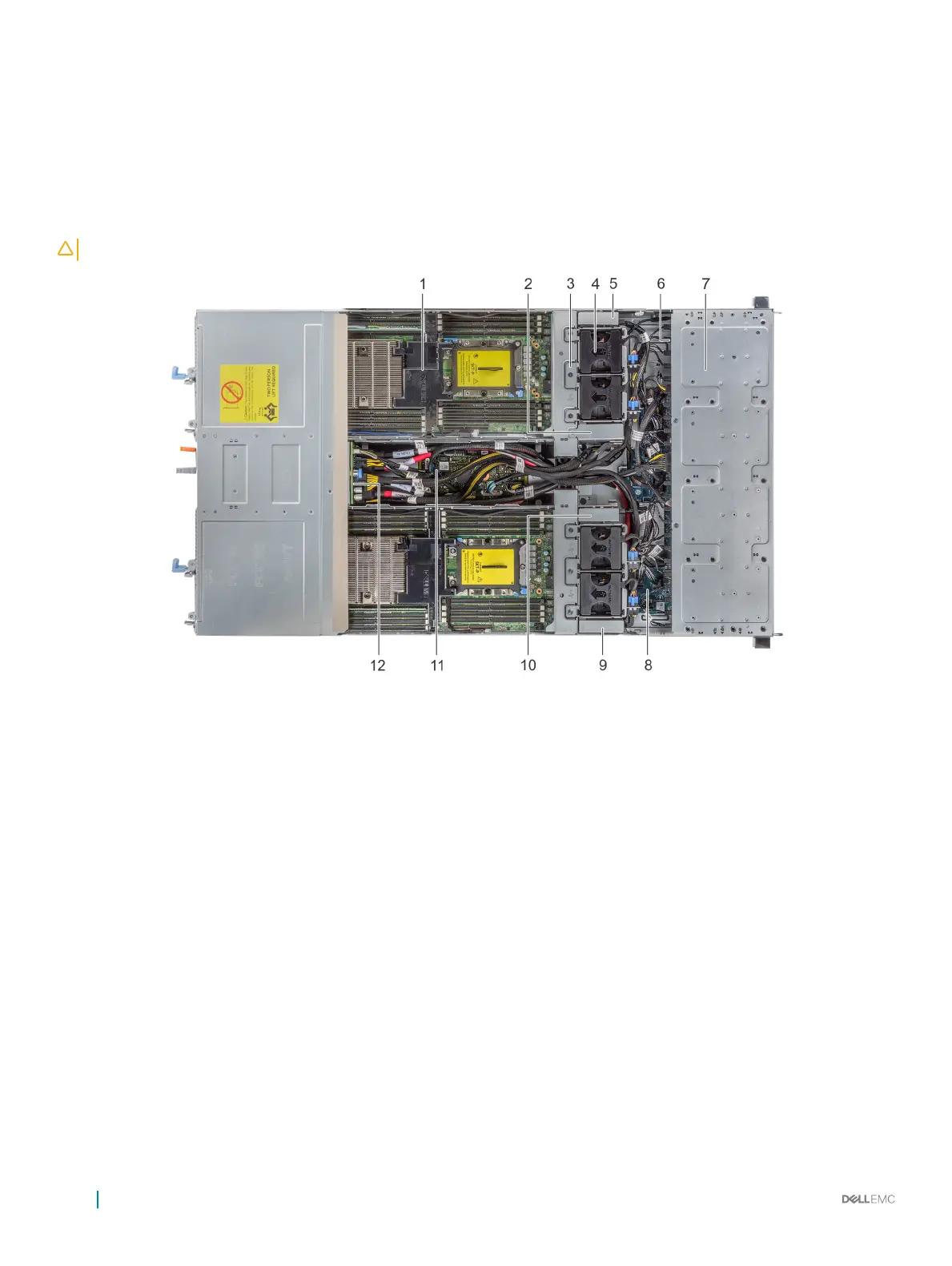

Figure 10. Inside the C6400 enclosure
1
sled (4) 2 right midplane
3 fan cage (2) 4 fan (4)
5 right linking board 6 backplane
7 drive cage 8 expander board
9 left midplane 10 left linking board
11 chassis management board 12 power interposer board
62 Installing and removing system components
