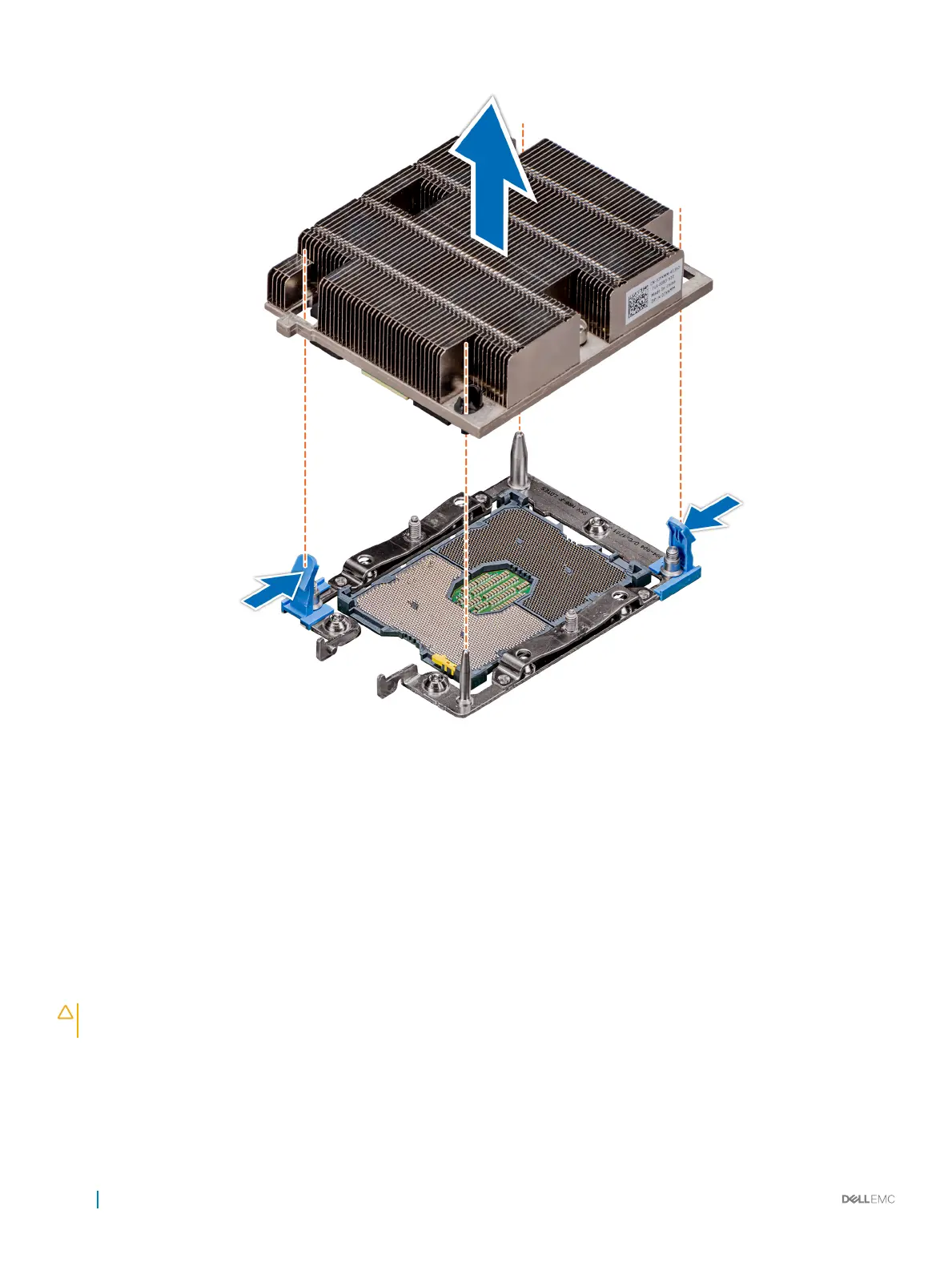

Figure 27. Removing the processor and heat sink module
Next step
Install the PHM.
Related link
Installing a processor and heat sink module
Installing a processor and heat sink module
Prerequisites
CAUTION
: Never remove the heat sink from a processor unless you intend to replace the processor. The heat sink is necessary to
maintain proper thermal conditions.
1
Follow the safety guidelines listed in Safety instructions.
2 If installed, remove the CPU dust cover.
Steps
1 Align the pin 1 indicator of the heat sink to the system board and then place the processor and heat sink module (PHM) on the
processor socket.
80
Installing and removing system components
