Dell EMC PowerEdge C6420 - Installing the Fabric Processor into the Processor Heat Sink Module

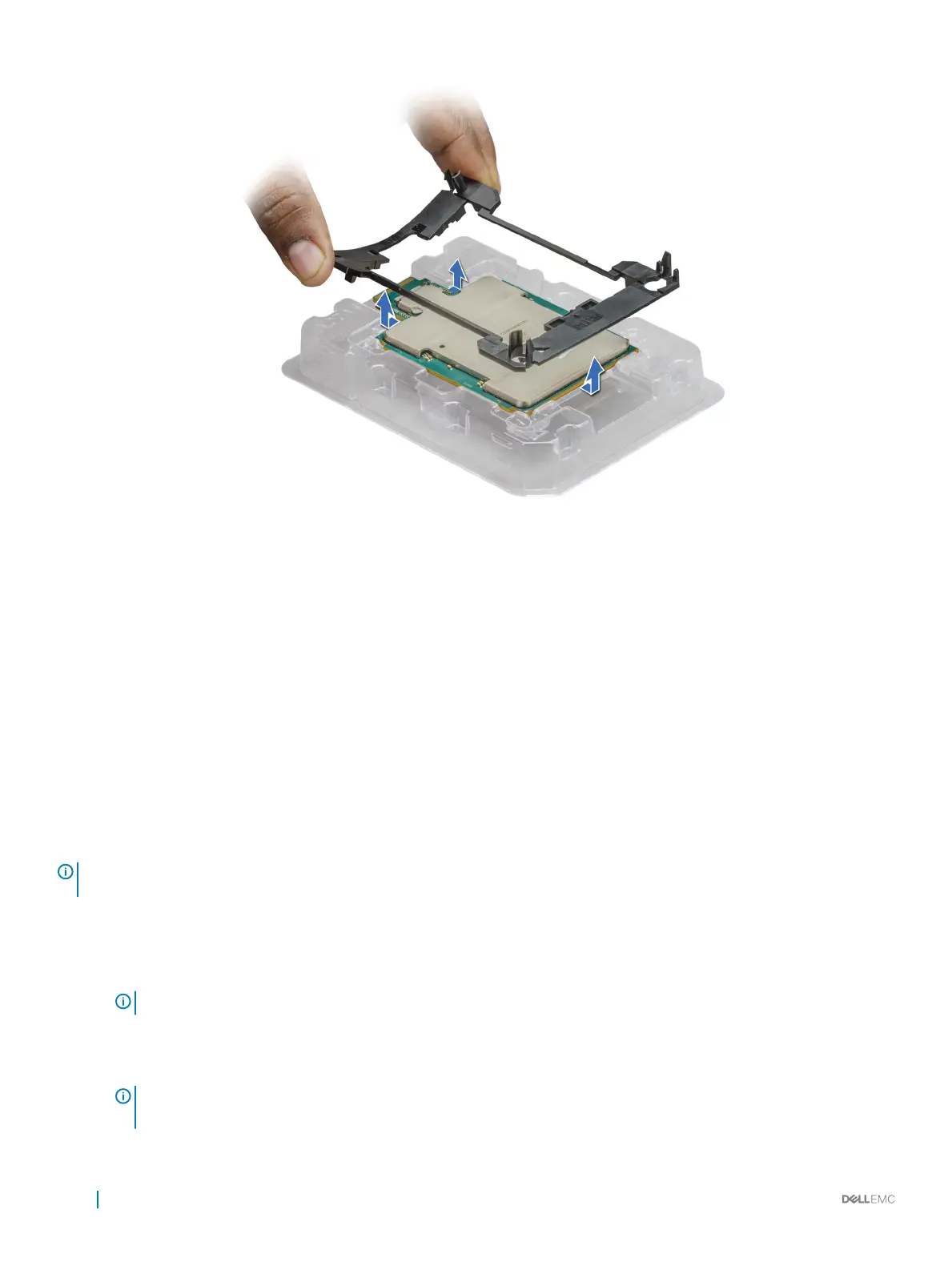

Figure 30. Removing the processor bracket
Next step
Install the fabric processor into the processor heat sink module.
Related link
Removing a sled
Removing the air shroud
Removing a processor and heat sink module
Installing the fabric processor into the processor heat sink module
Installing the fabric processor into the processor heat sink
module
Prerequisite
NOTE
: In a sled which has been congured with mixed CPUs – a fabric processor installed in the CPU2 socket and a non-fabric
processor installed in the CPU1 socket, you must connect the external Omnipath link cables to Port 2 on the OCP carrier card.
Follow the safety guidelines listed in Safety instructions.
Steps
1 Ensure that the processor is in the CPU tray.
NOTE
: Ensure that pin 1 indicator on the CPU tray is aligned with the pin 1 indicator on the processor.
2 Flex the outer edges of the bracket around the processor, close to the fabric connector, ensuring that the processor is locked into the
clips on the bracket.
3 Press the other end of the bracket to ensure that the clip is locked on to the processor.
NOTE
: Ensure pin 1 indicator on the bracket is aligned with the pin 1 indicator on the processor before placing the
bracket on the processor.
