Back view of the PowerEdge C6420 sled

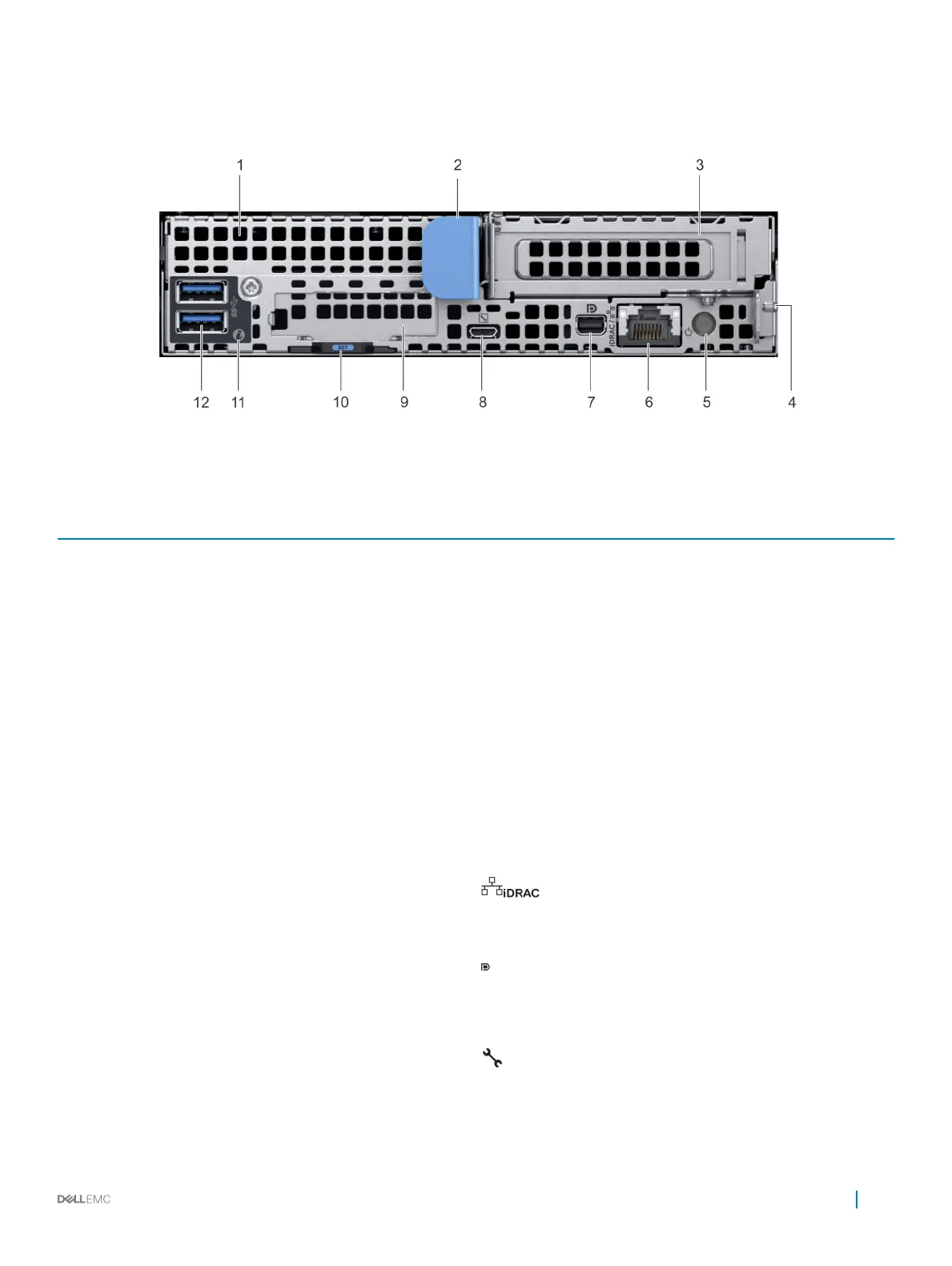

Figure 2. Back view of the PowerEdge C6420 sled
Table 1. Back panel features
Item Indicator, button, or connector Icon Description
1 mezzanine card slot N/A
Enables you to connect
mezzanine expansion cards. For
more information, see the
Technical specications section.
2 sled release handle N/A
Enables you to remove the sled
from the enclosure.
3 Low Prole PCIe card slot N/A
Enables you to connect PCI
Express expansion cards. For
more information, see the
Technical specications section.
4 sled release lock N/A
Enables you to remove the sled
from the enclosure.
5 rear power button N/A
Enables you to power on the sled
while accessing it from the rear.
6 iDRAC or NIC port
Enables you to remotely access
iDRAC. For more information,
see the iDRAC User’s Guide at
Dell.com/idracmanuals.
7 mini display port Enables you to connect a display
device to the system. For more
information, see the Technical
specications section.
8 iDRAC Direct micro USB port
Enables you to connect a
portable device to the sled.
9 OCP or OPA card slot N/A
Enables you to connect Open
Compute Project (OCP) or
