Installing the front bezel
The procedure to install the front bezel with and without the LCD panel is the same.
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Locate and remove the bezel key.
NOTE: The bezel key is part of the LCD bezel package.
2 Align and insert the right end of the bezel onto the system.
3 Press the release button and t the left end of the bezel onto the system.
4 Lock the bezel by using the key.

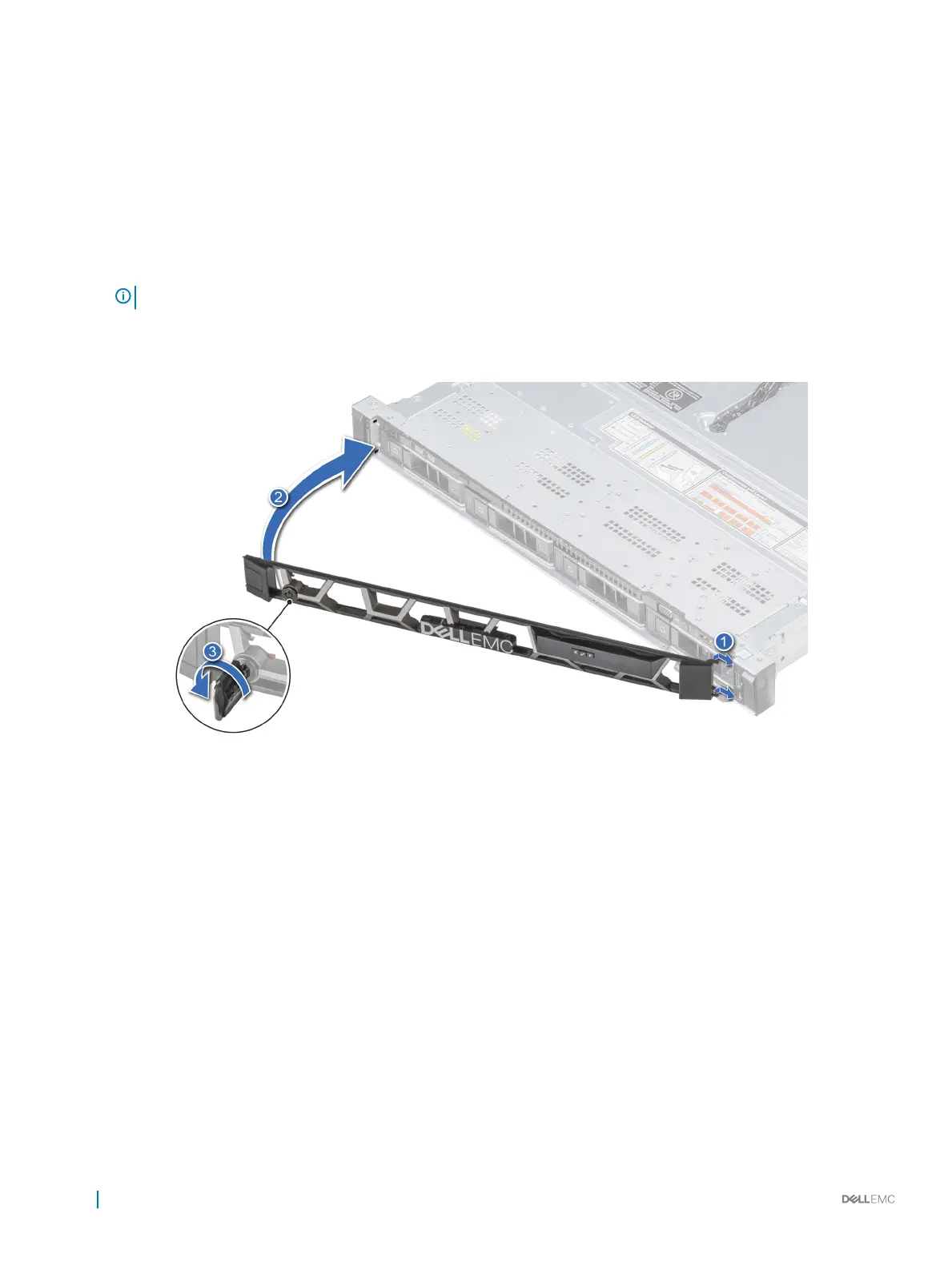

Figure 22. Installing the front bezel with the LCD panel
System cover
System cover provides security for the entire system and also helps in maintaining proper air ow inside the system.
Removing the system cover
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Turn o the system, including any attached peripherals.
3 Disconnect the system from the electrical outlet and disconnect the peripherals.
Steps
1 Using a 1/4 inch at head or a Phillips #2 screwdriver, rotate the latch release lock counter clockwise to the unlocked position.
2 Lift the latch till the system cover slides back and the tabs on the system cover disengage from the guide slots on the system.
