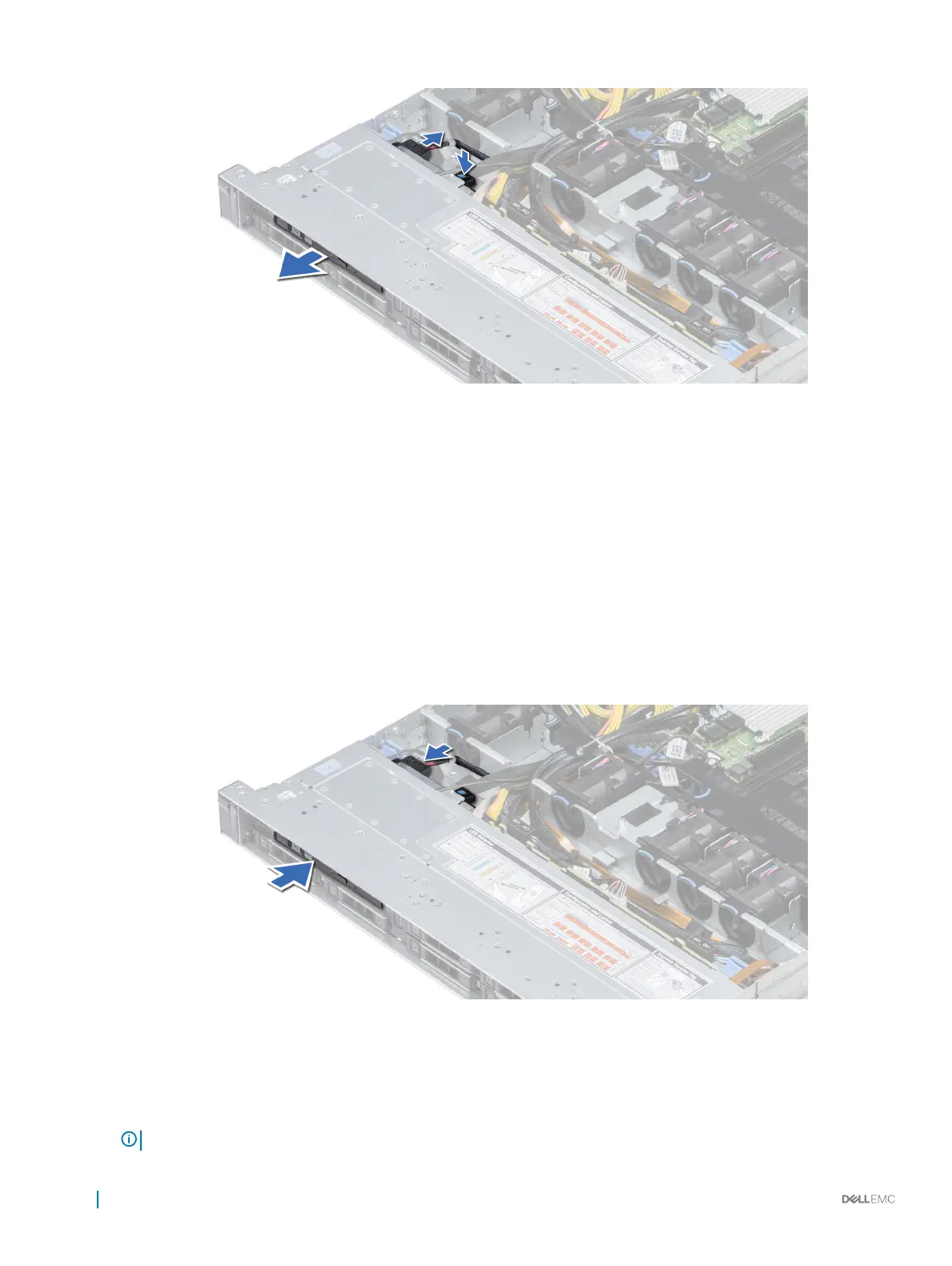

Figure 81. Removing optical drive
Next step
Install an optical drive.
Installing the optical drive
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Align the optical drive with the optical drive slot on the front of the system.
2 Slide in the optical drive until the release tab snaps into place.
Figure 82. Installing optical drive
Next steps
1 Connect the power and data cables to the connector on the optical drive and the connector on the system board.
NOTE
: Route the cable properly on the side of the system to prevent it from being pinched or crimped.
