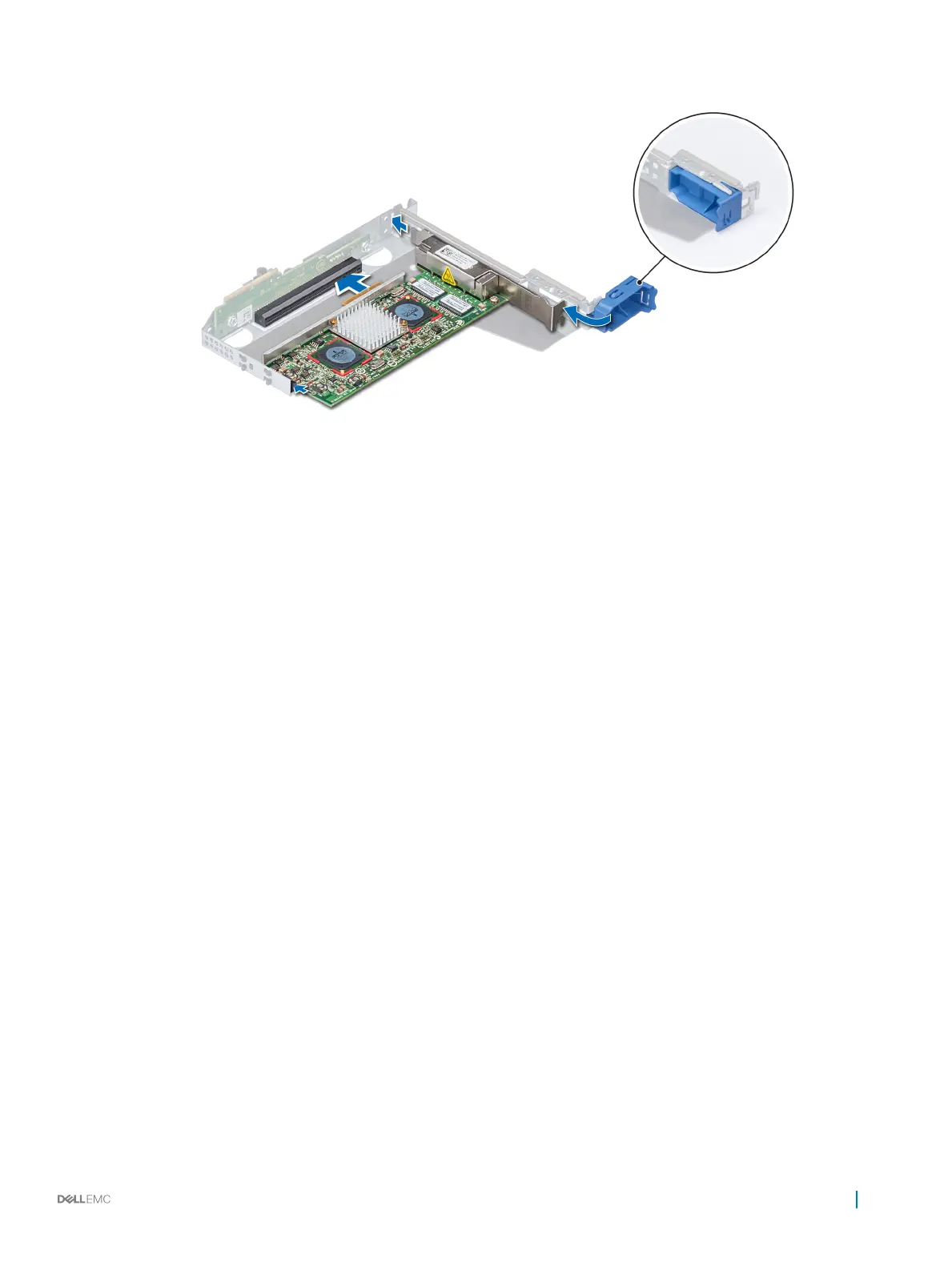

Figure 63. Installing expansion card into full height X1 riser
Next steps
1 If applicable, connect the cables to the expansion card.
2 If applicable, install air shroud.
3 Follow the procedure listed in After working inside your system.
4 Install any device drivers required for the card as described in the documentation for the card.
Removing an expansion card riser
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Disconnect any cables connected to the expansion card.
Step
Hold the touch points, and lift the expansion card riser, from the riser connector, on the system board.
Next step
Install the expansion card riser.
Installing an expansion card riser
Prerequisite
1 Follow the safety guidelines listed in Safety instructions.
Installing and removing system components
75
