Removing internal PERC riser
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the air shroud.
4 Open the cable guiding latch for easy access.
Steps
1 Open the plunger.
2 Hold the blue touch points and lift the internal PERC riser away from the system.

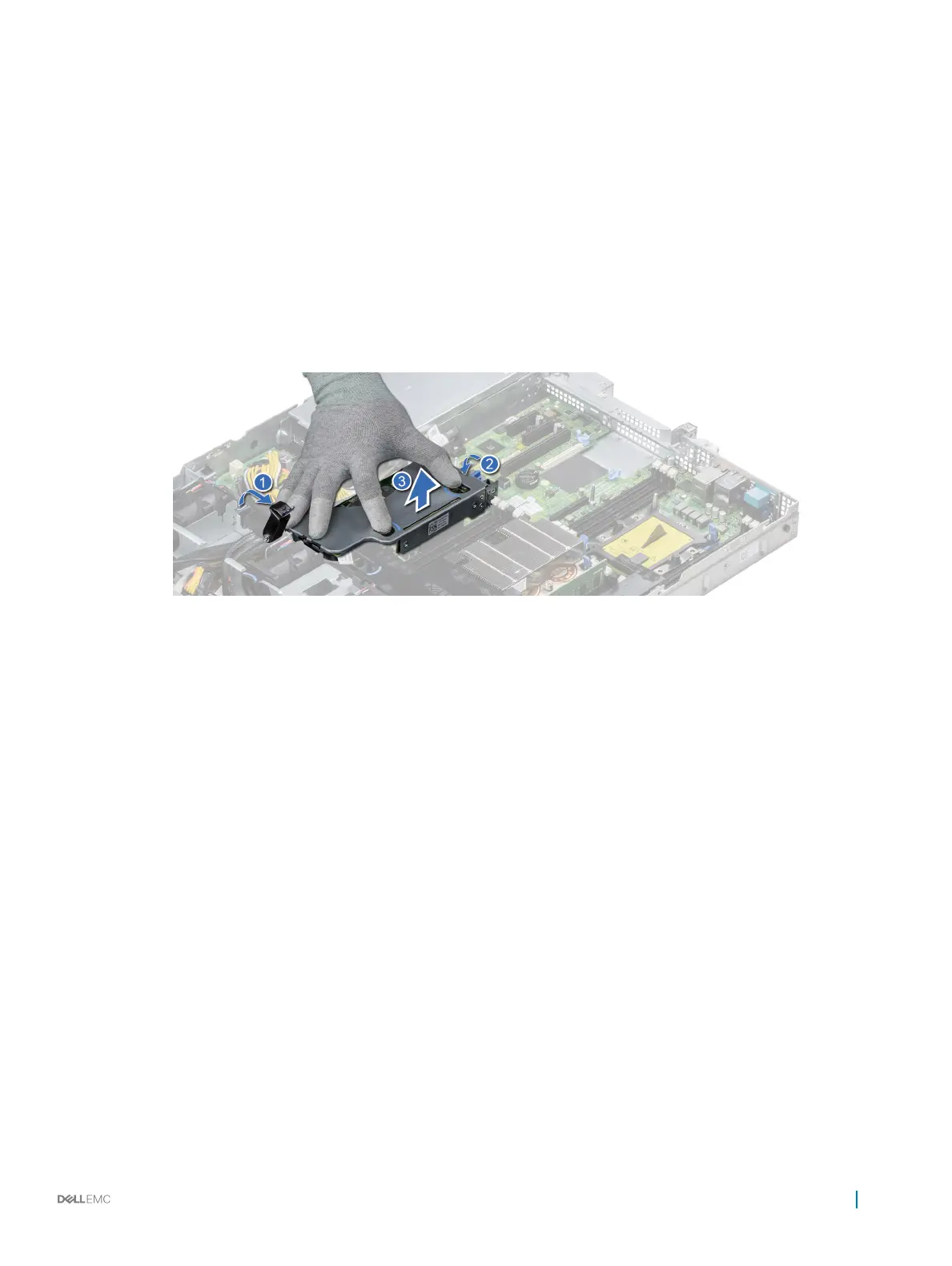

Figure 31. Removing internal PERC riser
3 Disconnect the cable connected to the internal PERC riser.
Installing and removing system components
47
