CAUTION: To avoid damage to the battery connector, you must rmly support the connector while installing or
removing a battery.
2 Use a plastic scribe to pry out the system battery.

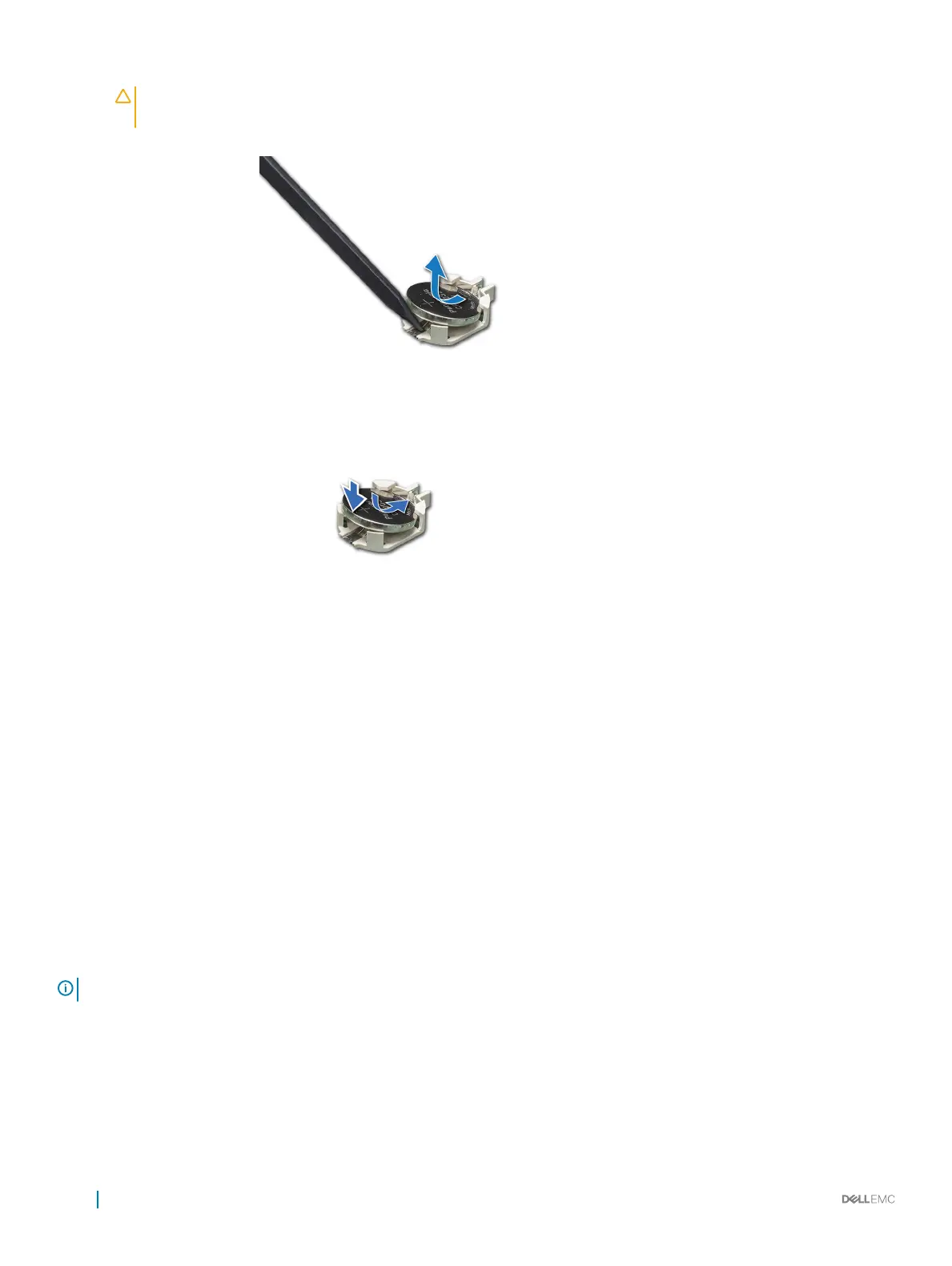

Figure 79. Removing the system battery
3 To install a new system battery, hold the battery with the positive side facing up and slide it under the securing tabs.
4 Press the battery into the connector until it snaps into place.
Figure 80. Installing the system battery
Next steps
1 Install the expansion card riser 1A.
2 If applicable, connect the cables to the expansion card(s).
3 Follow the procedure listed in After working inside your system.
4 While booting, press F2 to enter the System Setup and ensure that the battery is operating properly.
5 Enter the correct time and date in the System Setup Time and Date elds.
6 Exit the System Setup.
Optional internal USB memory key
An optional USB memory key installed inside your system can be used as a boot device, security key, or mass storage device. To boot from
the USB memory key, congure the USB memory key with a boot image and then specify the USB memory key in the boot sequence in
System Setup.
An optional USB memory key can be installed in the internal USB 3.0 port.
NOTE
: To locate the internal USB port on the system board, see the System board jumpers and connectors section.
90 Installing and removing system components
