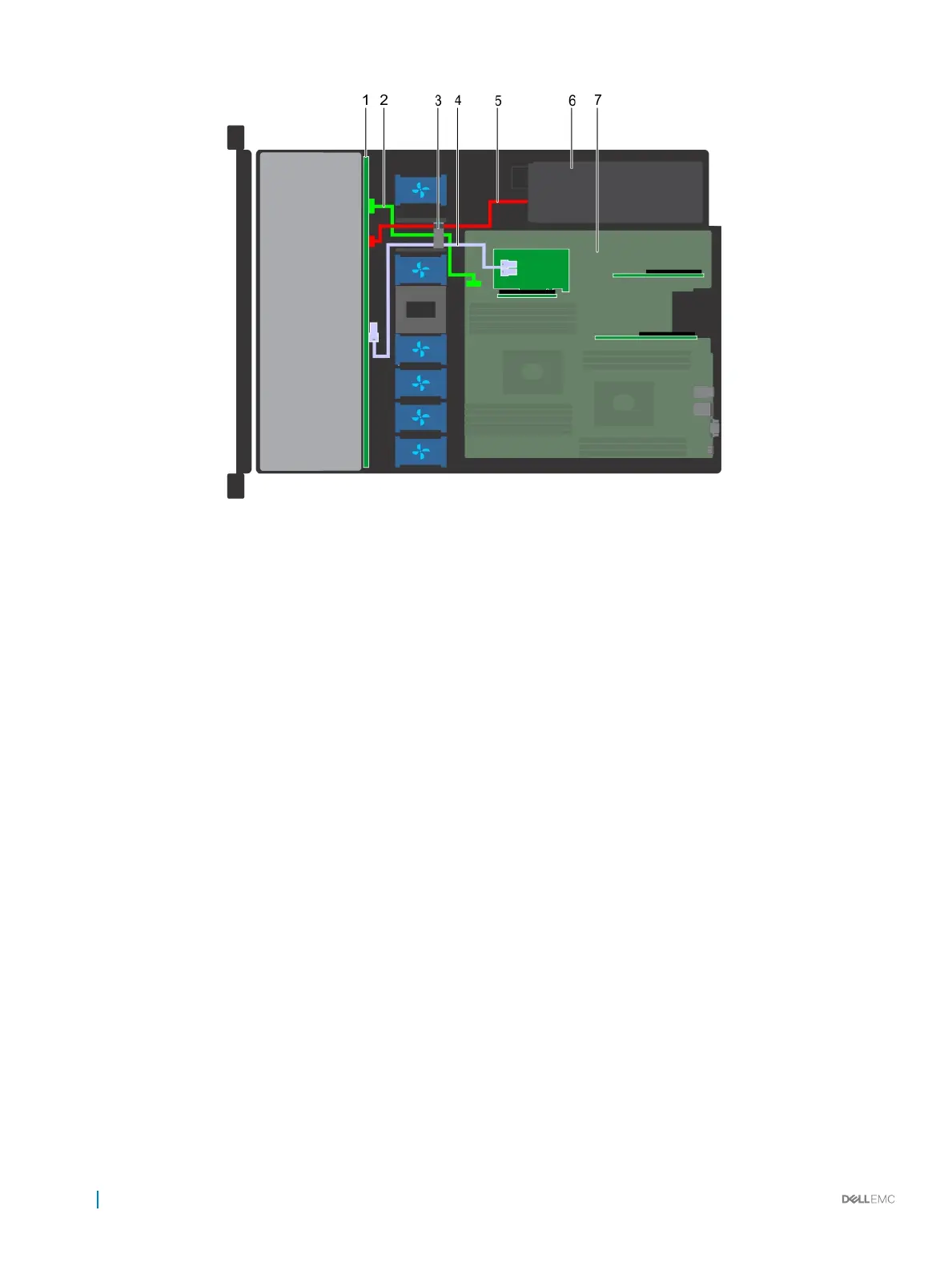

Figure 77. Cable routing - 4 x 3.5 hard drive backplane with PERC
1
hard drive backplane 2 backplane power cable
3 cable routing clip 4 SAS cable
5 backplane signal cable 6 power supply unit
7 system board
