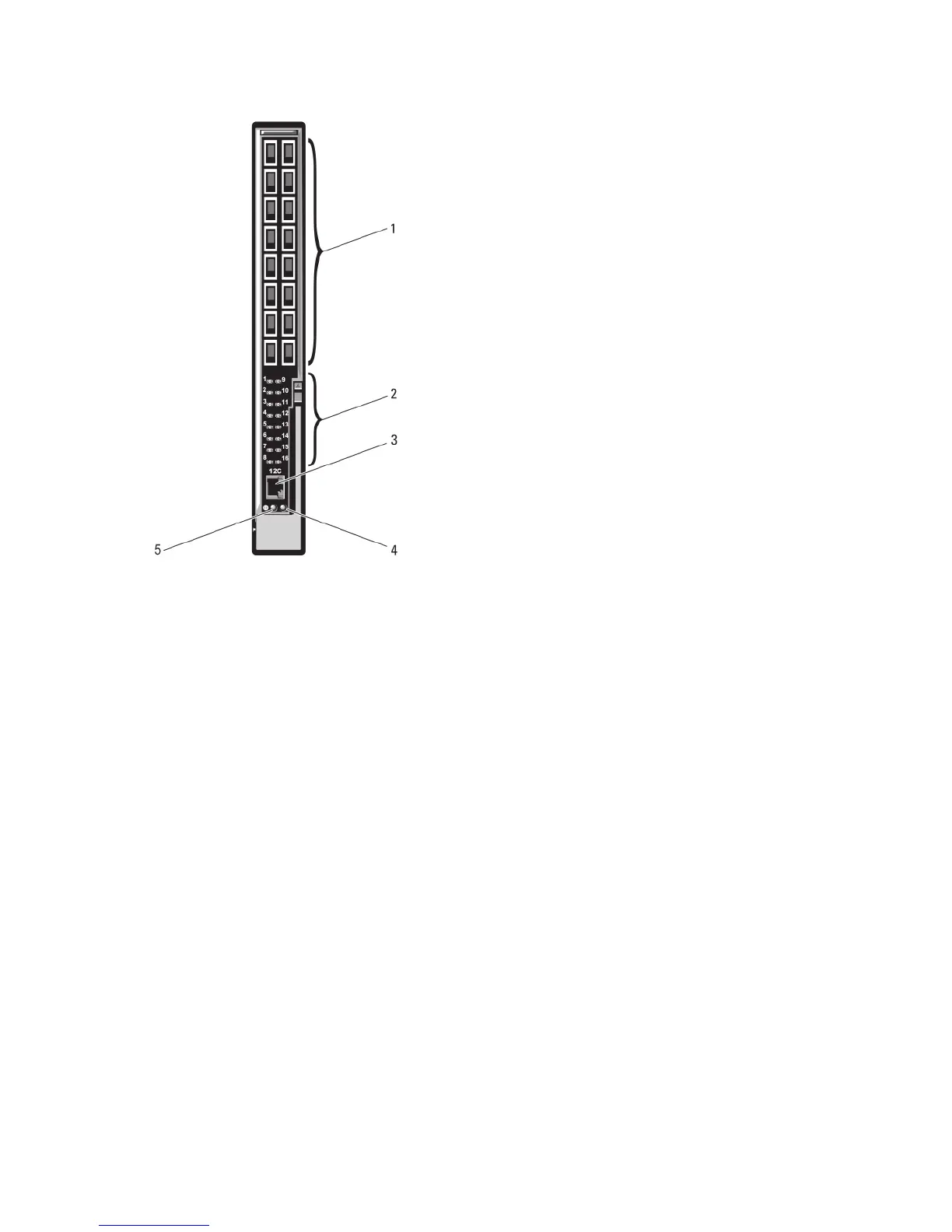

Figure 21. Mellanox M4001F/M4001Q/M4001T Infiniband Switch Module
1. Infiniband QSFP ports (16)
2. LED status/module status indicators
3. serial port (RJ-45 connector)
4. module status indicator
5. power indicator
Dell PowerConnect KR 8024-k Switch
The PowerConnect KR M8024-k switch provides 16 internal 10 GbE ports, four external 10 GbE SFP+ ports, and one 10
GbE expansion slot for 10 GbE external uplinks. The expansion slot on the front panel can support the following modules:
• 10 Gb Ethernet module with four optical SFP+ connectors
• 10 Gb Ethernet module with three copper CX4 uplinks
• 10 Gb Ethernet module with two copper 10GBASE-T uplinks
This switch may be installed in either Fabric B or Fabric C.
53

Dell External M1000e t Specifications

General

Rack Units	10U
Model	M1000e
Power Supply	Up to 6 power supply units (PSUs)
Form Factor	Enclosure
Cooling	Redundant, hot-swappable fans
Management	Dell Chassis Management Controller (CMC)
Compatibility	Dell PowerEdge blade servers
Networking	Fibre Channel, InfiniBand
