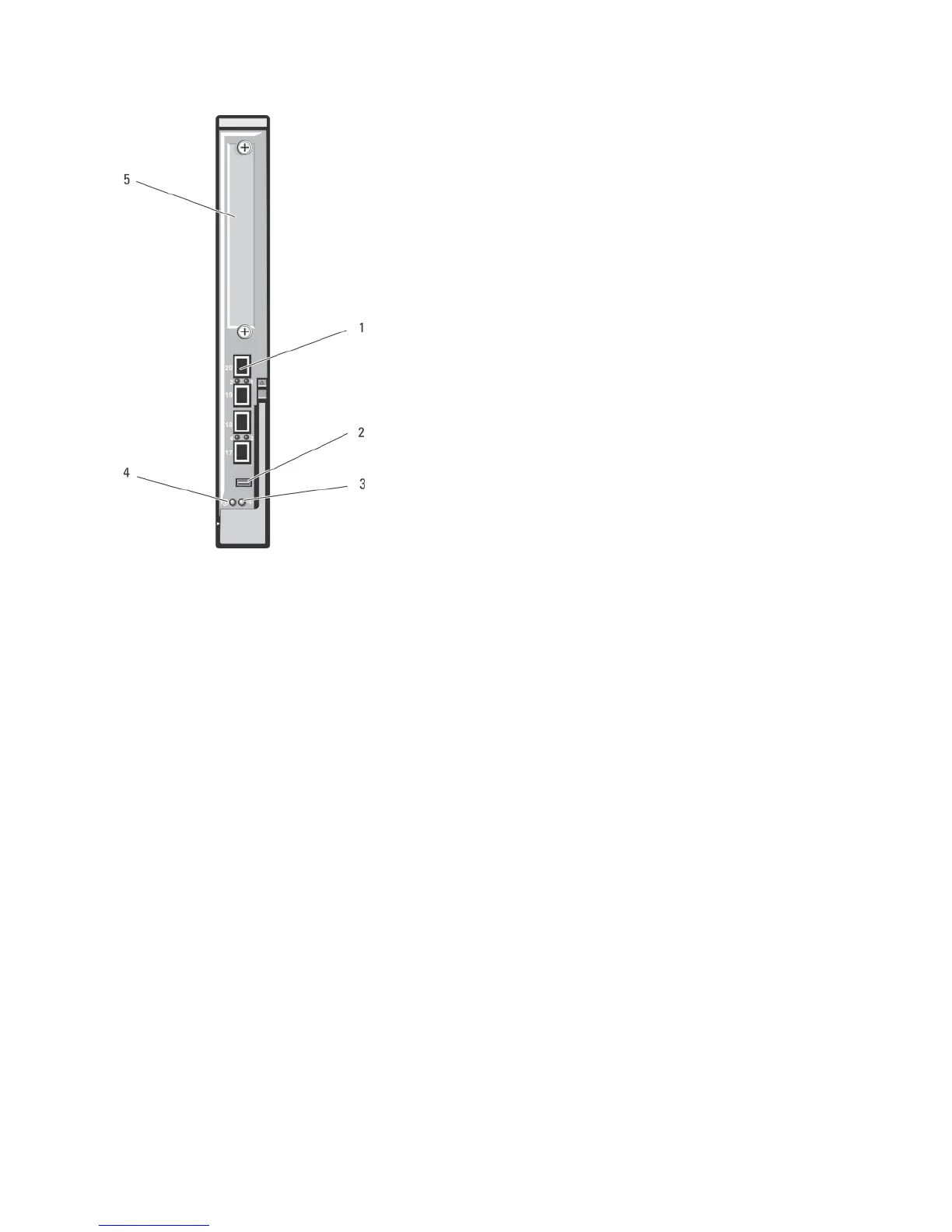

Figure 22. Dell PowerConnect KR 8024-k Switch
1. SFP+ ports (4)
2. console management connector
3. status/identification indicator
4. power indicator
5. expansion slot
Dell PowerConnect M8428-k 10 Gb Converged Network Switch
The Dell PowerConnect M8428-k 10 Gb Converged Network switch module supports FCoE protocols and allows fibre
channel traffic to travel over 10 Gbps Enhanced Ethernet (DCB) networks. This module consists of:
• Four 8 Gbps external autosensing fibre channel ports.
• Eight 10 Gb Enhanced Ethernet (DCB) optical SFP+ port connectors.
• Sixteen internal 10 Gb Enhanced Ethernet (DCB/FCoE) ports that link to the blades in the enclosure.
• One serial port with an RJ-45 connector.
This fibre channel switch may be installed in any of the three Fabrics.
For additional information about the Dell PowerConnect M8428-k 10 Gb Converged Network switch module, see the
documentation at support.dell.com/manuals.
