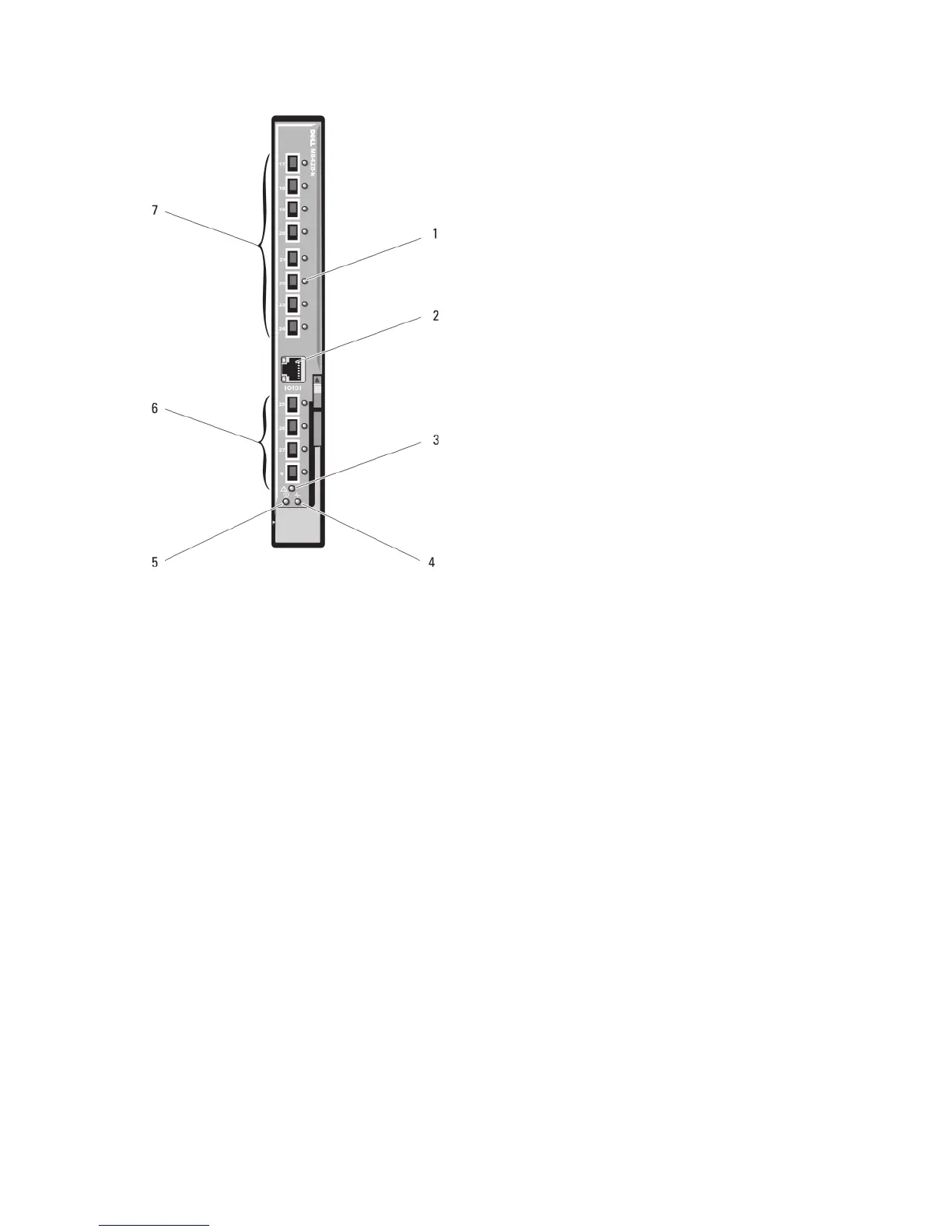

Figure 23. Dell PowerConnect M8428-k 10 Gb Converged Network Switch
1. LED status indicators (12)
2. serial port (RJ-45 connector)
3. module status indicator
4. diagnostic status indicator
5. power indicator
6. 8 Gb fibre channel ports (ports 25–27 and port 0)
7. 10 GbE ports (ports 17–24)
Mellanox M2401G DDR Infiniband Switch I/O Module
The Mellanox M2401G DDR Infiniband switch I/O module includes 24 4x DDR Infiniband ports. Eight ports are external
uplink ports, while 16 internal ports provide connectivity to the blades in the enclosure.
