Dell External M1000e t User Manual

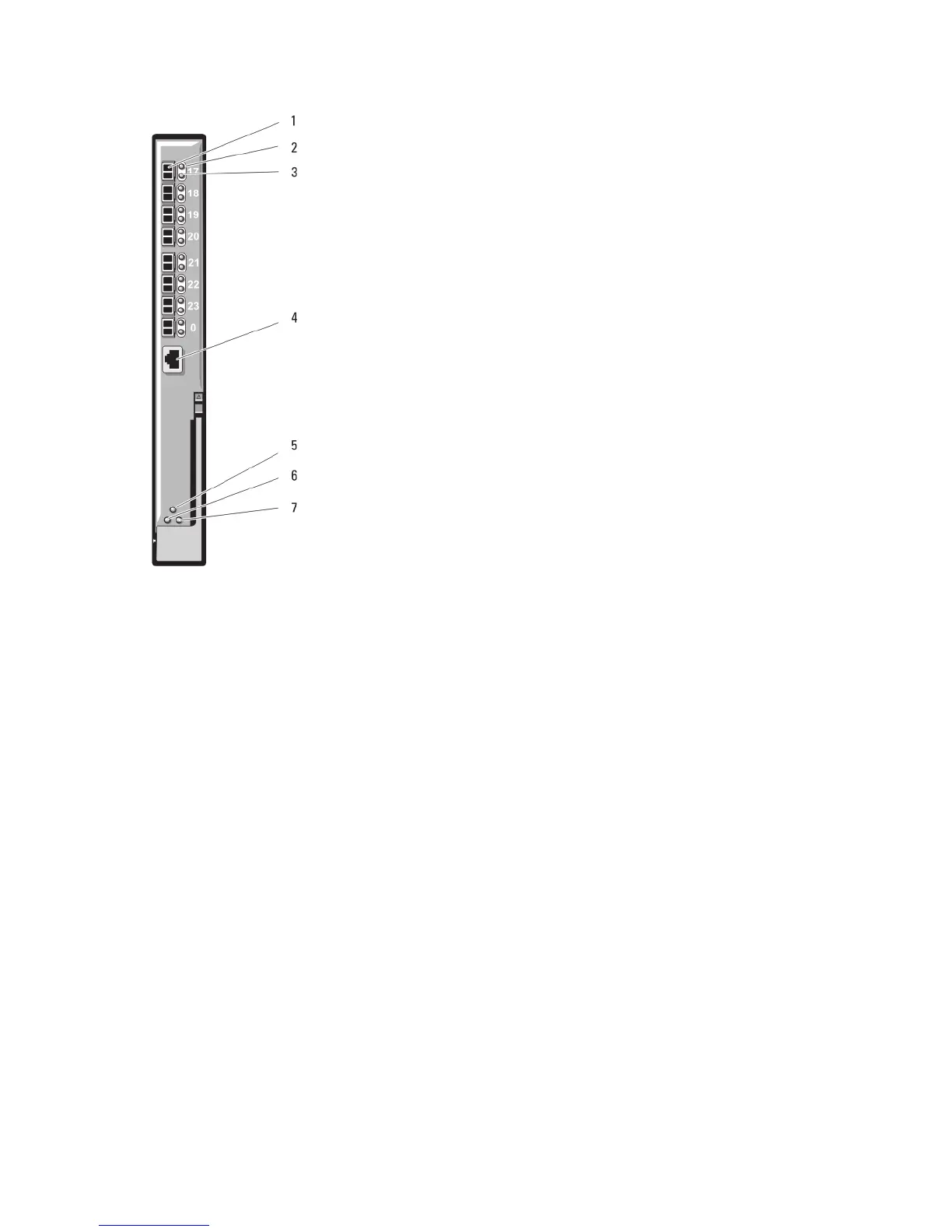

Figure 31. Brocade M5424 FC8 I/O Module
1. fibre channel ports (8)
2. fibre channel port status indicators (8)
3. fibre channel port speed indicators (8)
4. serial port (RJ-45 connector)
5. module status indicator
6. power indicator
7. status/identification indicator
The following are the I/O module indicators:
Fibre channel
port status
indicator
Indicator Status
Off No signal carrier
Amber on Signal present but not online
Green on Online, but no activity
Green blinking
slowly
Online, but segmented
Green blinking
quickly
Internal loopback
Green flickering I/O activity on port
Amber blinking
slowly
Port disabled
63

Dell External M1000e t Specifications

General

Rack Units	10U
Model	M1000e
Power Supply	Up to 6 power supply units (PSUs)
Form Factor	Enclosure
Cooling	Redundant, hot-swappable fans
Management	Dell Chassis Management Controller (CMC)
Compatibility	Dell PowerEdge blade servers
Networking	Fibre Channel, InfiniBand
