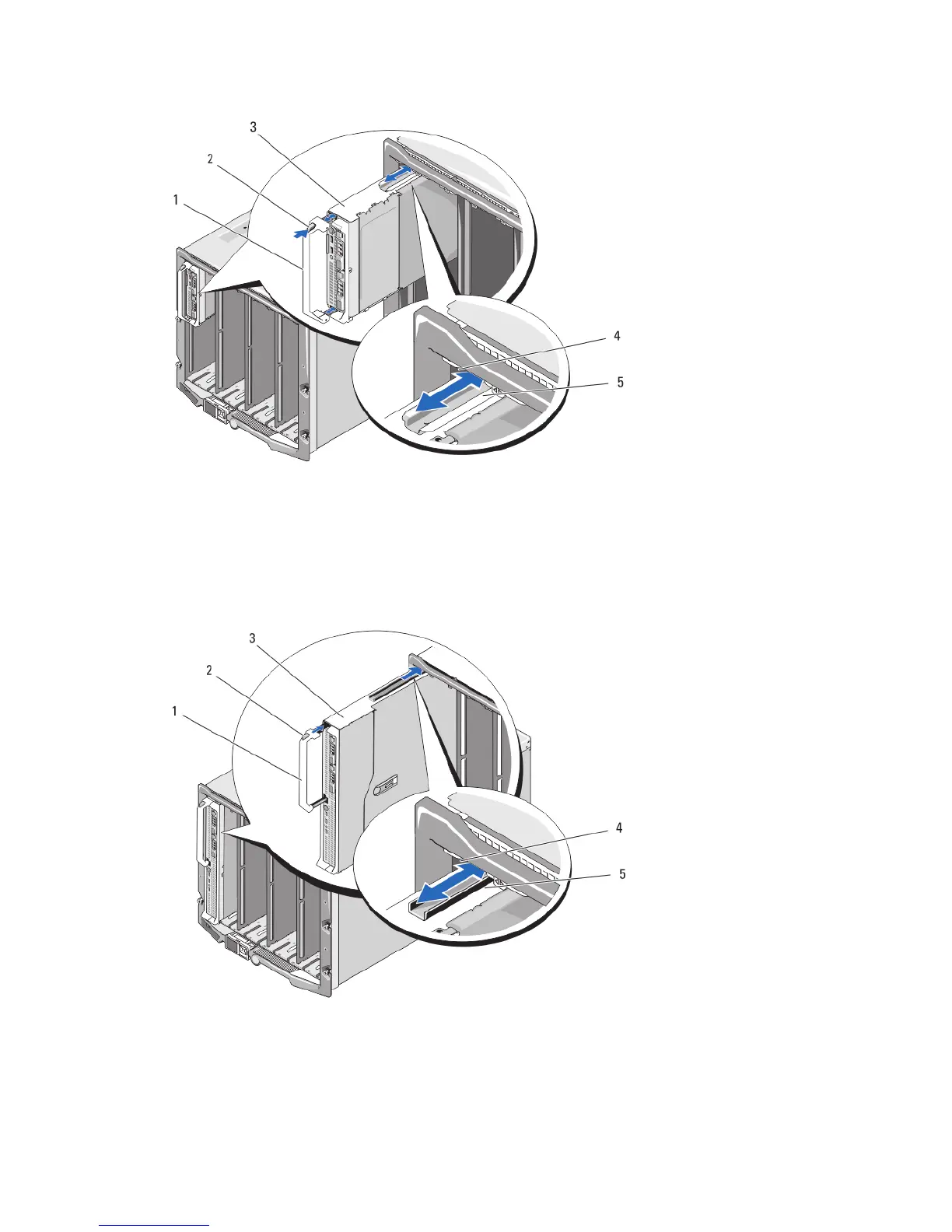

Figure 36. Removing and Installing a Half-Height Blade
1. blade handle
2. release button
3. blade
4. guide rail on enclosure
5. guide rail on blade (or blade blank)
Figure 37. Removing and Installing a Full-Height Blade
1. blade handle
