Dell Force10 C150 User Manual

14 | Installing the C150 Chassis
www.dell.com | support.dell.com
Installing the Chassis into an Equipment Rack
Follow these steps to install the chassis into a 19-inch equipment rack:
Step Task
1 Dell Force10 recommends that you install a equipment rack bar. This bar enables you to easily position the chassis
into the rack and stabilizes the chassis.
• Orient the equipment rack bar at the desired location in the rack, with the arrows pointing up and the smooth
side facing outward.

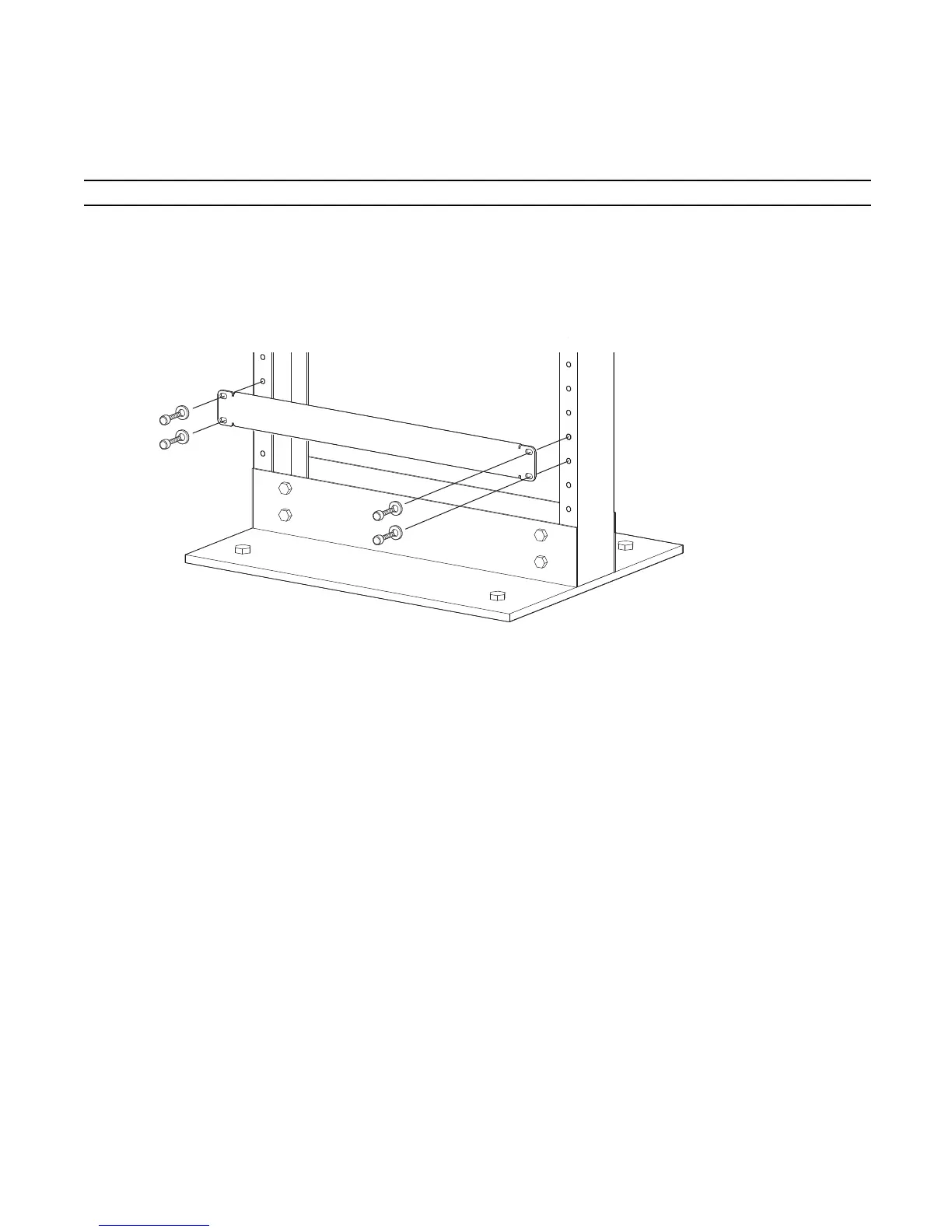

Figure 4-1. Installing the Equipment Rack Bar
2 Attach the bar to the rack ( Figure 4-1 ) using the mounting screws provided with your rack.
3 Use an equipment lift to align the chassis rack-mount holes with the equipment rack holes, and situate the chassis
on top of the equipment rack bar.
fnC0008m
p
