Management Cable Pinout | 23
6
Management Cable Pinout
Connecting the Console Port
The console port is an asynchronous serial port. If you connect a device to these ports, it must be capable
of asynchronous transmission. Your terminal or terminal emulation mode must be set to VT100 with the
following settings:
• 9600 baud rate (To avoid autobaud input, the default is set to a 9600 BPS.)
• No parity
• 8 data bits
• 1 stop bit
• Window Terminal Emulator option set to NO
• 24 lines X 80 characters
• No flow control
Cable and Adapter Pin Assignments
Use the console port on the RPM of the C150 to connect to a terminal port, PC serial port, or a terminal
server to configure and monitor your system. An RJ-45 Ethernet cable is required to connect to the
Ethernet port.
The console port is an RJ-45, the pinouts of which are shown in
Figure 6-1
.

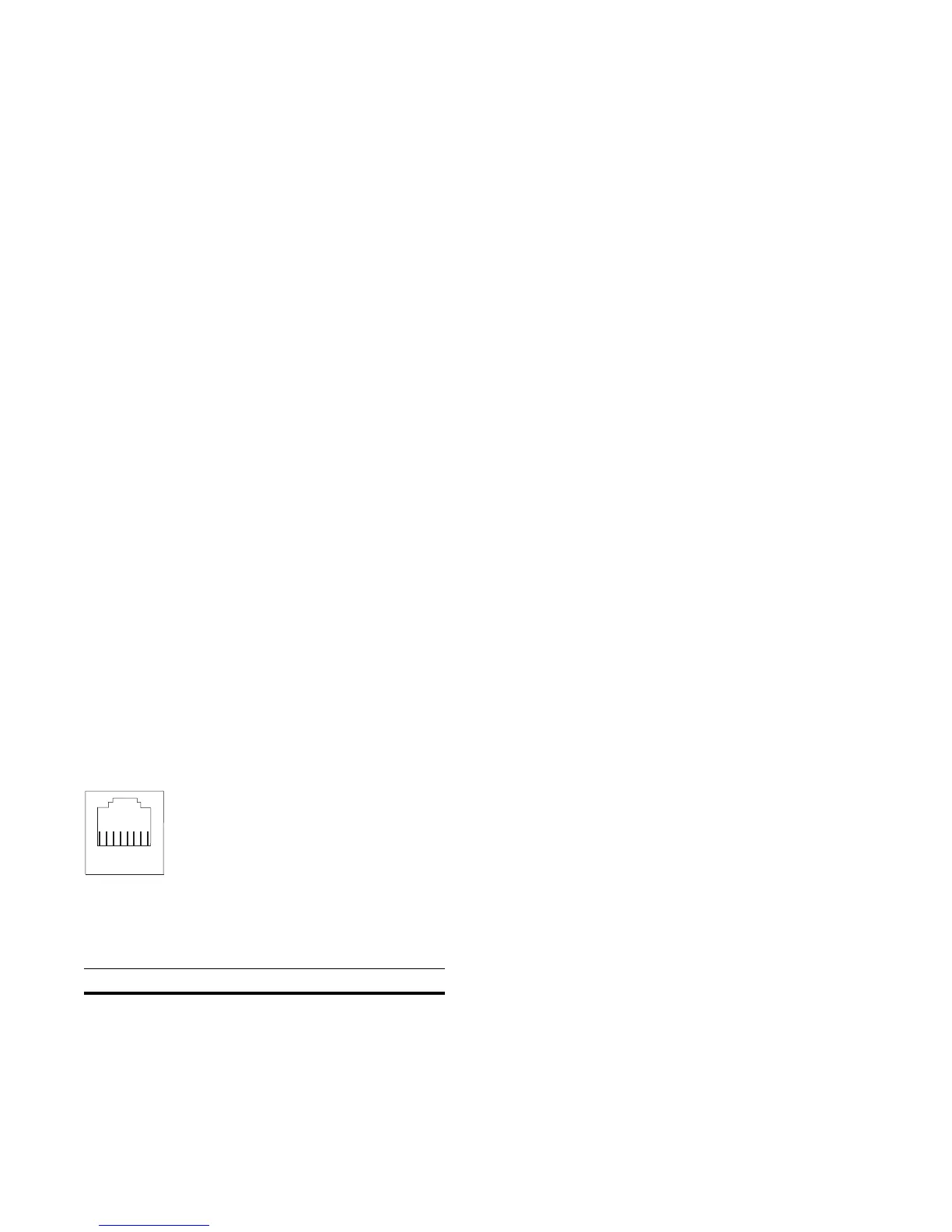

Figure 6-1. Pinouts for an RJ-45 Connector End of Adaptors
Table 6-1
displays the RJ-45 console port pin assignments.
Table 6-1. Console Port (RJ-45) Pin Assignments
Pin Signal Input/Output
1 NC (unused) -
2 DTR Output
3 TxD Output
4 GND -
87654321
fnC0011mp
