Fan Tray | 39
10
Fan Tray
The C150 chassis contains one field-replaceable fan tray. There are two types of fan tray that may be
installed: Fan Tray CC-C150-FAN2 contains six fans that run at varying speeds depending on system
temperature, Fan Tray CC-C150-FAN contains six fans that run at a constant speed. For both types of
trays, air flows through the C150 system toward the fans (right to left) and is exhausted on the fan-side of
the chassis. The fan tray is accessible from the front of the chassis.
Contact Dell Force10 Technical Support if you have questions concerning the fan tray for your system.
NOTE: To ensure proper temperature and airflow control, the fan tray must always be installed and operating
properly.
NOTE: The C150 does not have an air filter, so take special care in making sure that the installation site and
the chassis itself are cleaned regularly.

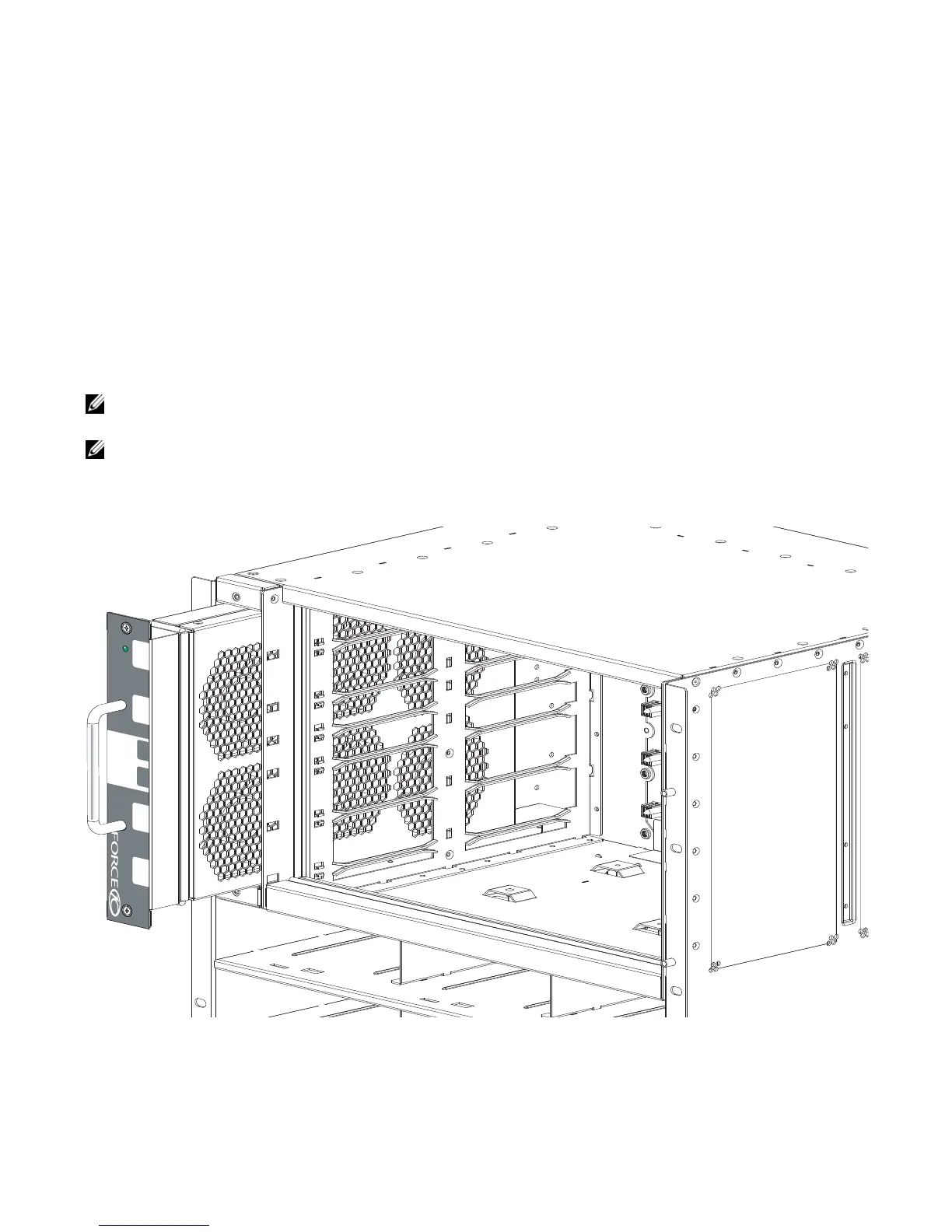

Figure 10-1. Inserting the Fan Tray
fnD0003mp
0
1
2
3
R0
R1
