Dell Latitude 7400 - Installing the WLAN Card

Installing the WLAN card

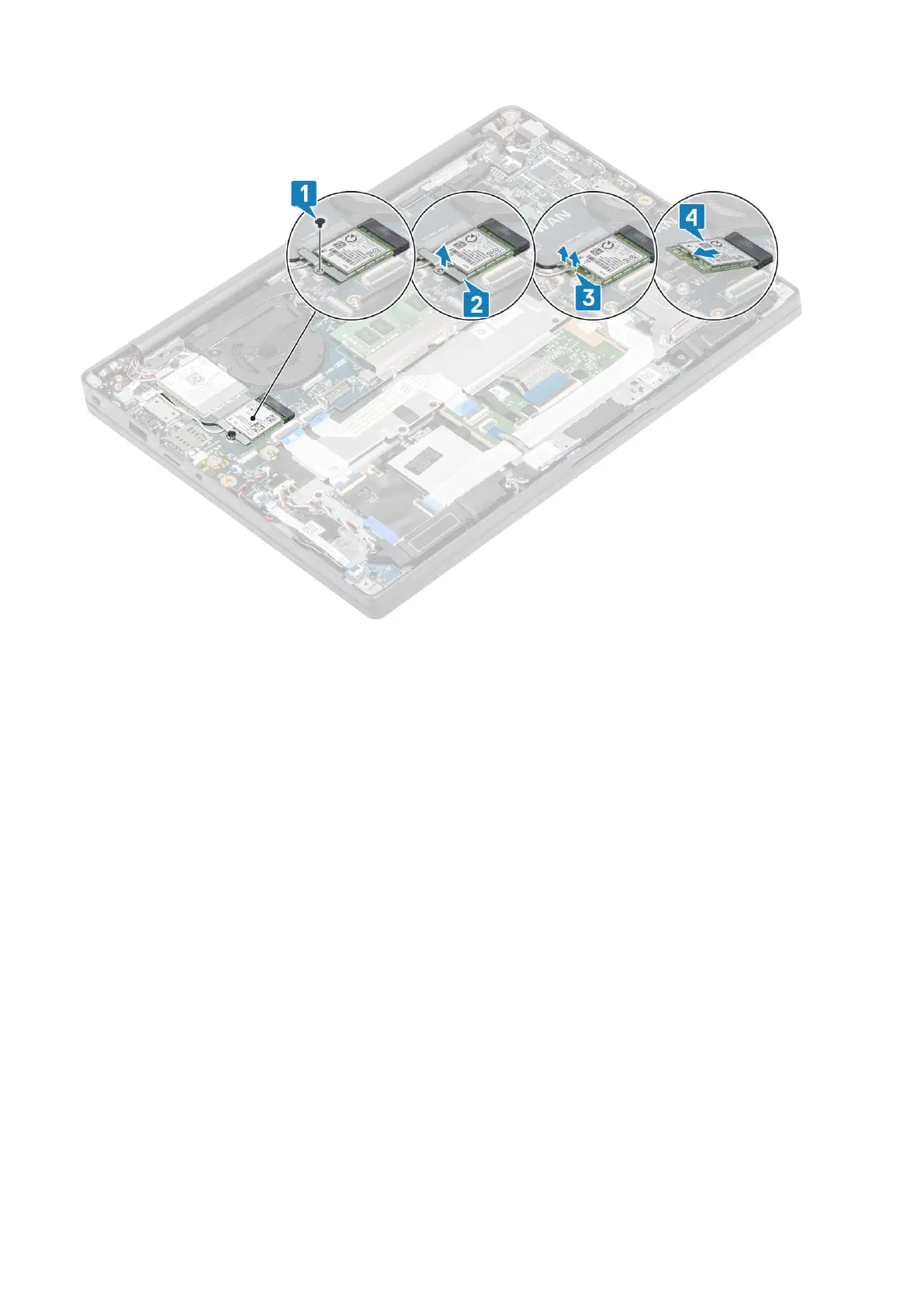

1. Insert the WLAN card into its slot on the system board [1].
2. Connect the antennae cables to the connectors on the WLAN card [2].
3. Place the metal bracket over the antennae connectors [3].
4. Replace the single (M2x3) screw to secure the metal bracket to the WLAN card and the system board [4].
