Dell Latitude 7400 - Installing the LED Daughterboard

Installing the LED daughterboard

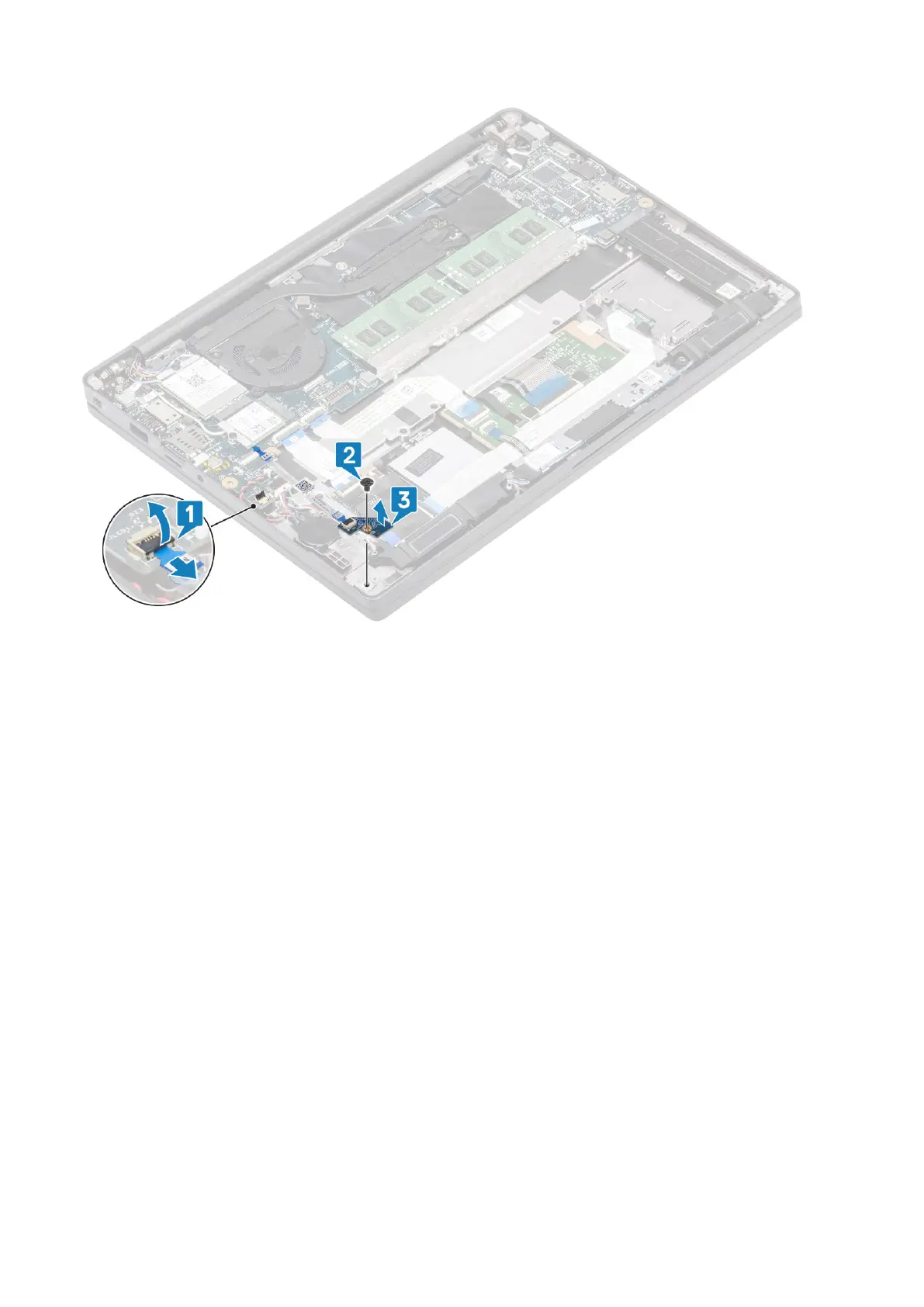

1. Align and place the LED daughterboard on the palmrest assembly [1].
2. Replace the single (M2x3) screw securing the LED daughterboard to the palmrest assembly [2].
3. Connect the LED daughterboard ribbon cable to the system board [3].
