Dell Latitude 7400 - Installing the Display Cable

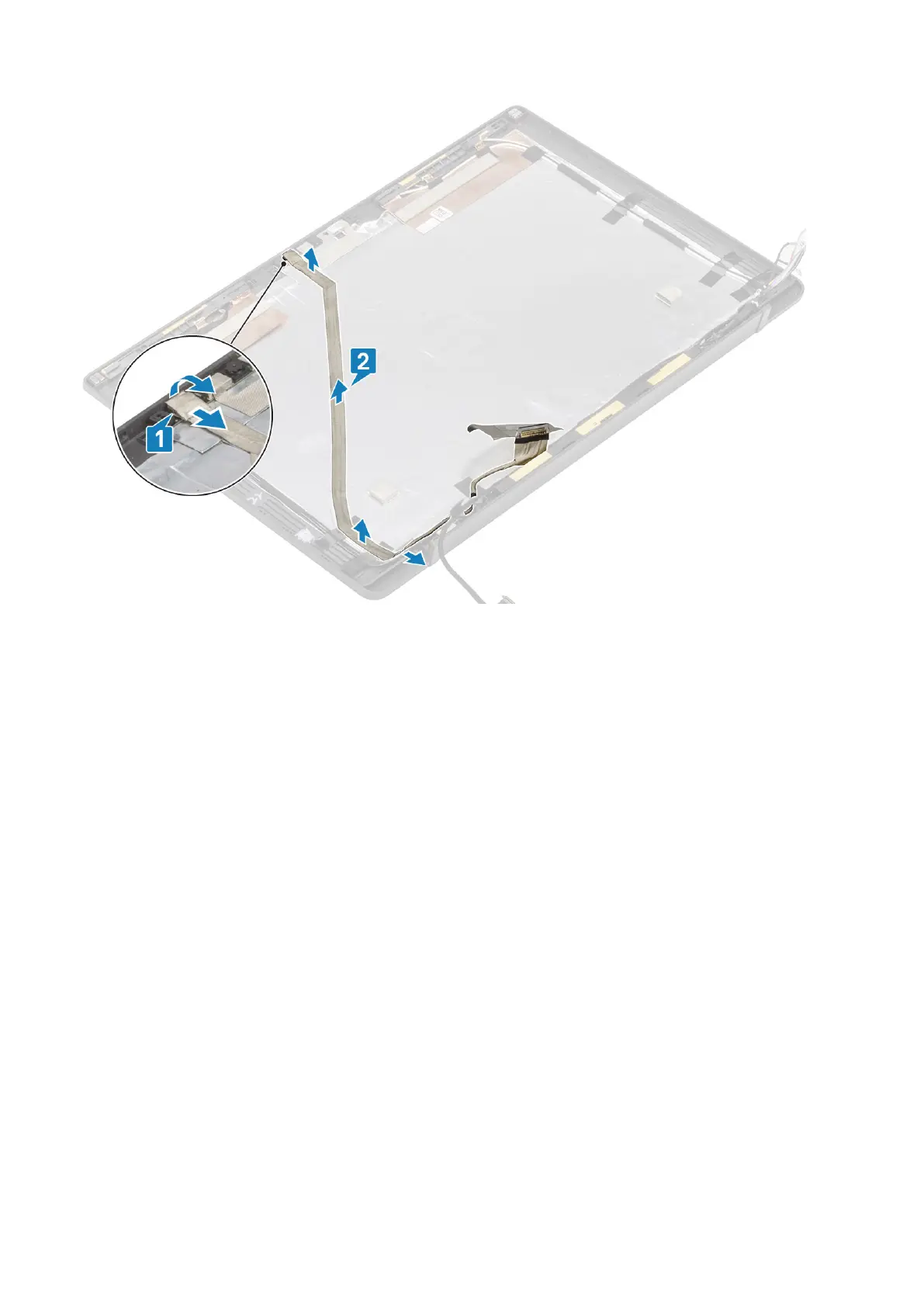

Installing the display cable
1. Adhere the display cable along the routing channel on the display back cover assembly [1] .
2. Connect the display cable to the camera microphone module and replace the tape on the connector [2].
68
Removing and installing components
