1. Install the display panel.
2. Install the hinges.
3. Install the display bezel.
4. Install the hinge cap
5. Install the display assembly
6. Install the battery.
7. Install the base cover.
8. Follow the procedure after working inside your computer.
Display Cable
Removing the display cable
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the display assembly.
5. Remove the hinge cap.
6. Remove the display bezel.
7. Remove the hinges.
8. Remove the display panel.

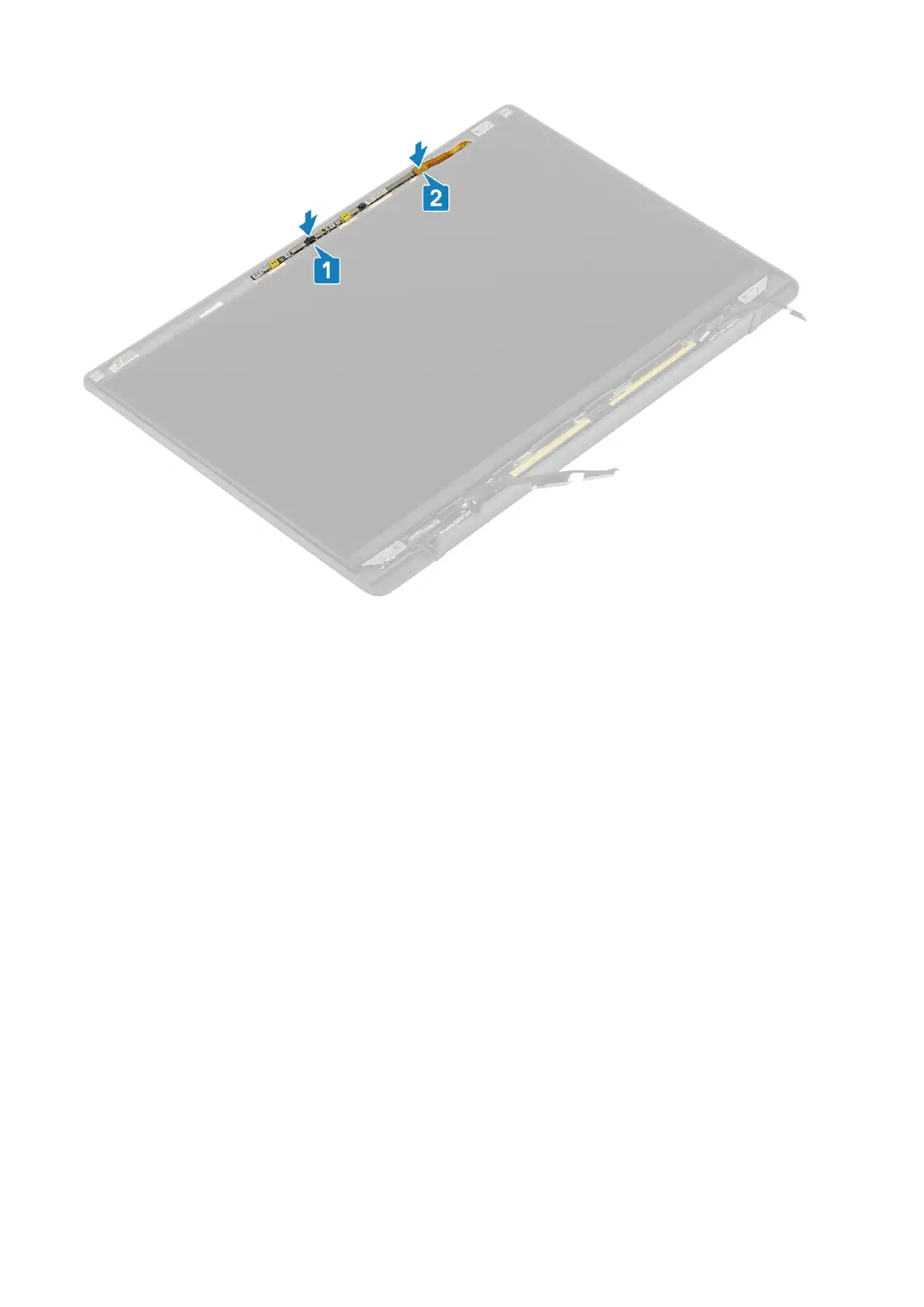

1. Peel back the adhesive tape securing the display cable to the camera-microphone module [1].
2. Gently peel off the display cable from its routing channel on the display back cover [2].
Removing and installing components
67
