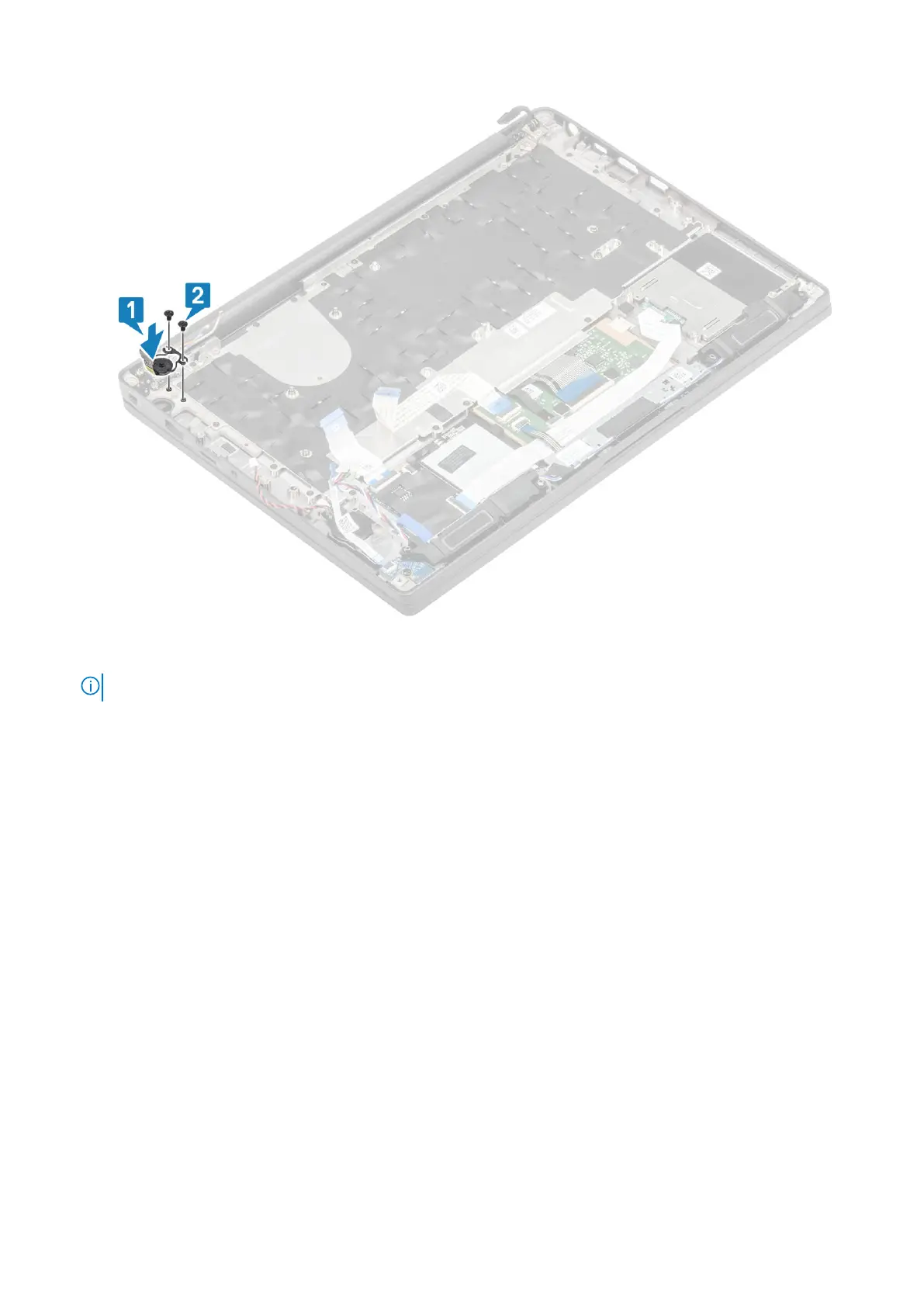

Figure 6. Installing the power-button board with FPR
NOTE: Power-button board with finger print reader, has a cable that connects to the system board.
1. Install the system board.
2. Install the touchpad buttons.
3. Install the display assembly
4. Install the power adapter port.
5. Install the heatsink-fan assembly.
6. Install the WLAN card.
7. Install the SSD.
8. Install the memory.
9. Install the battery.
10. Install the base cover.
11. Follow the procedure after working inside your computer.
Keyboard
Removing the keyboard
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the memory.
5. Remove the SSD.
6. Remove the WLAN card.
Removing and installing components
85
