Dell Latitude E6330 - Removing the Media Board

f) hard drive
g) battery
h) ExpressCard
i) SD card
6. Follow the procedures in After Working Inside Your Computer .
Removing the Media Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) SD card
b) ExpressCard
c) battery
d) hard drive
e) optical drive
f) base cover
g) keyboard trim
h) keyboard
i) bluetooth module
j) palmrest

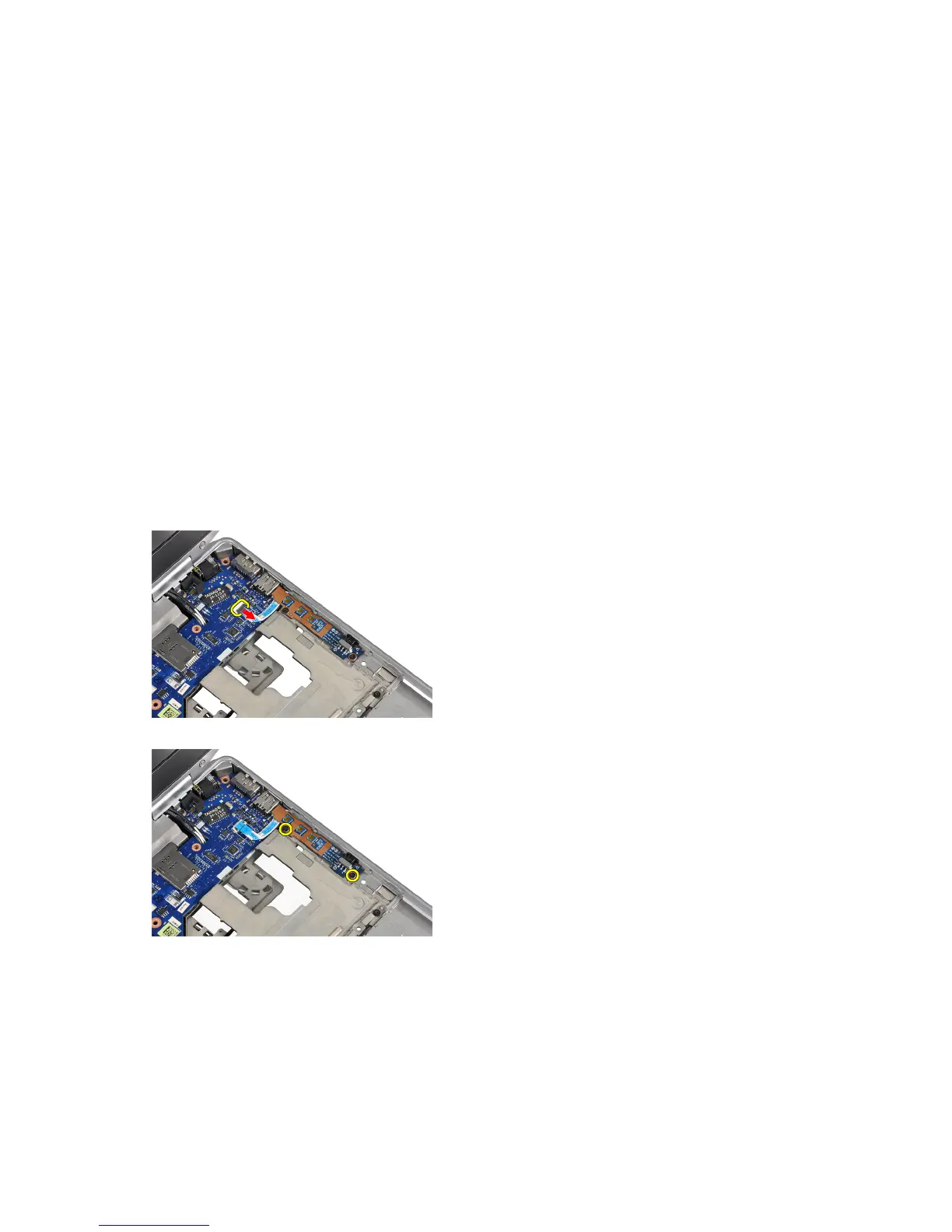

3. Disconnect the media-board cable from the system board.
4. Remove the screws that secure the media board to the computer.
5. Remove the media board from the computer.
28
