Dell Latitude E6330 - Installing the Expresscard Cage

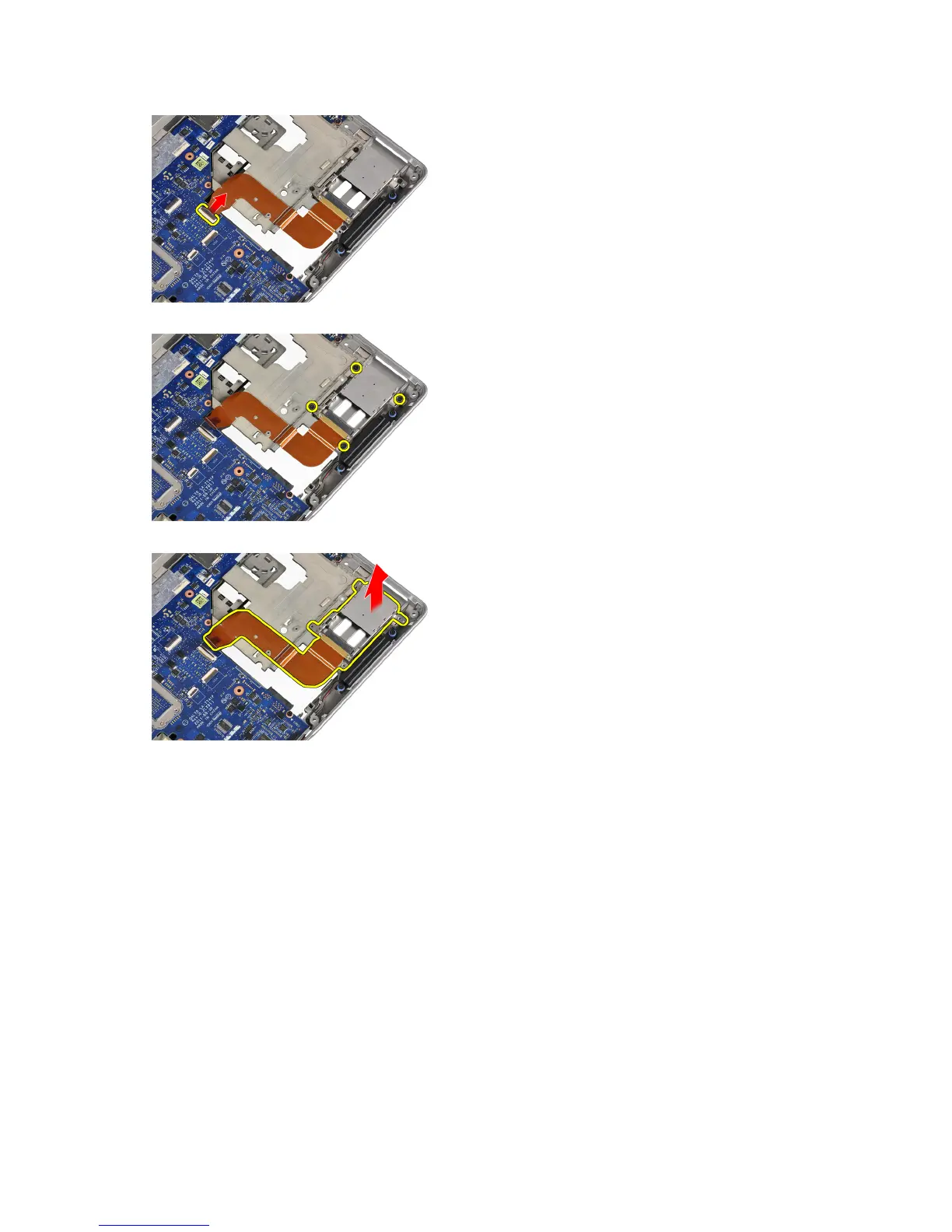

4. Remove the screws that secure the ExpressCard cage to the computer.
5. Remove the ExpressCard cage from the computer.
Installing the ExpressCard Cage
1. Insert the ExpressCard cage into its compartment.
2. Tighten the screws to secure the ExpressCard cage to the computer.
3. Connect the ExpressCard cable to the system board.
4. Install:
a) palmrest
b) bluetooth module
c) keyboard
d) keyboard trim
e) base cover
f) optical drive
g) hard drive
h) battery
i) ExpressCard
30
