Dell Latitude E6330 - Installing the Heat Sink; Removing the Power Connector Port

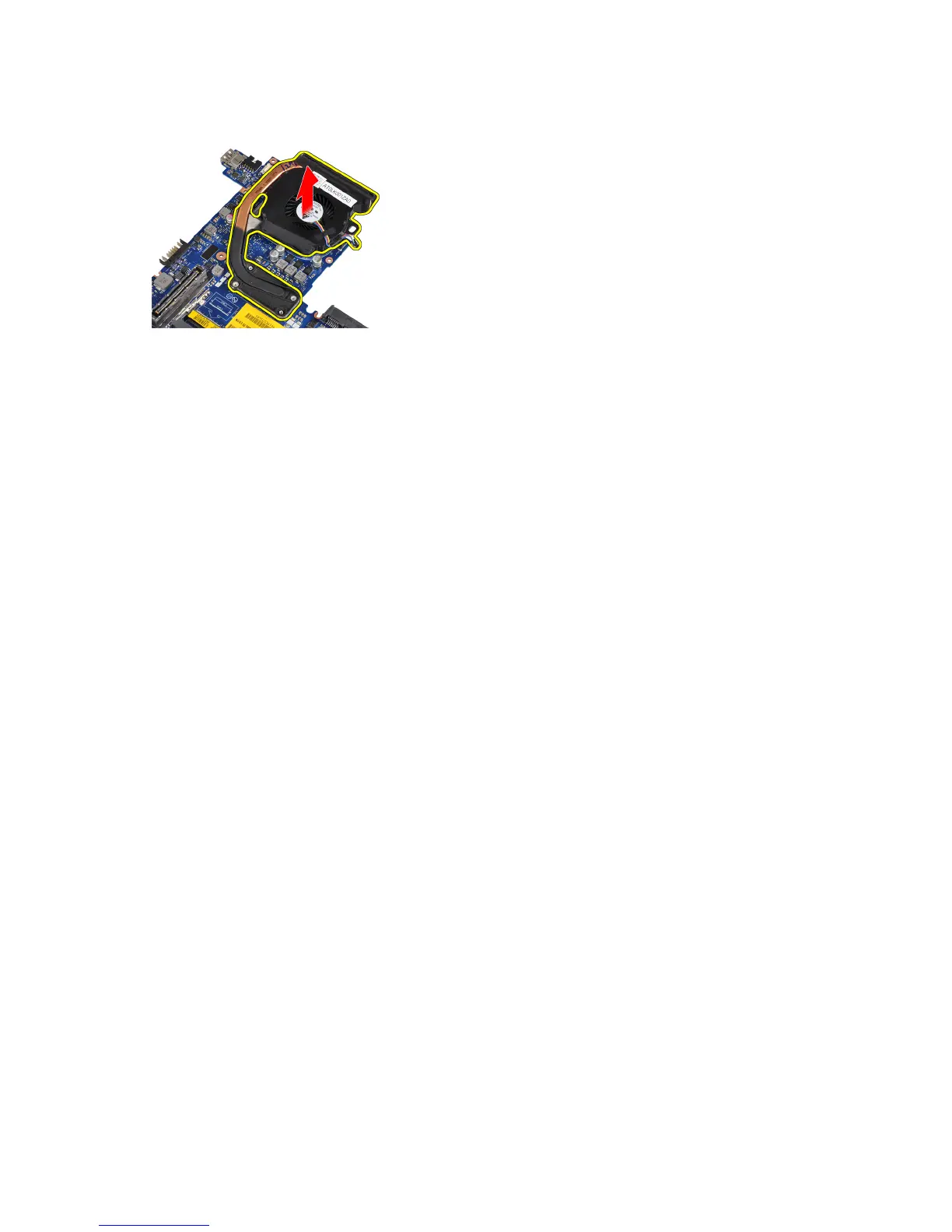

5. Remove the heat sink from the system board.
Installing the Heat Sink
1. Place the heat sink into its original position on the system board.
2. Tighten the screws to secure the heat sink to the system board
3. Connect the heat-sink cable to the system board.
4. Install:
a) system board
b) display assembly
c) display hinge covers
d) media board
e) palmrest
f) bluetooth module
g) keyboard
h) keyboard trim
i) base cover
j) optical drive
k) hard drive
l) battery
m) ExpressCard
n) SD card
5. Follow the procedures in After Working Inside Your Computer .
Removing the Power Connector Port
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) SD card
b) ExpressCard
c) battery
d) hard drive
e) optical drive
f) base cover
g) keyboard trim
h) keyboard
i) bluetooth module
j) palmrest
