Dell Latitude E6330 - Installing the LED Board; Removing the Display-Hinge Walls

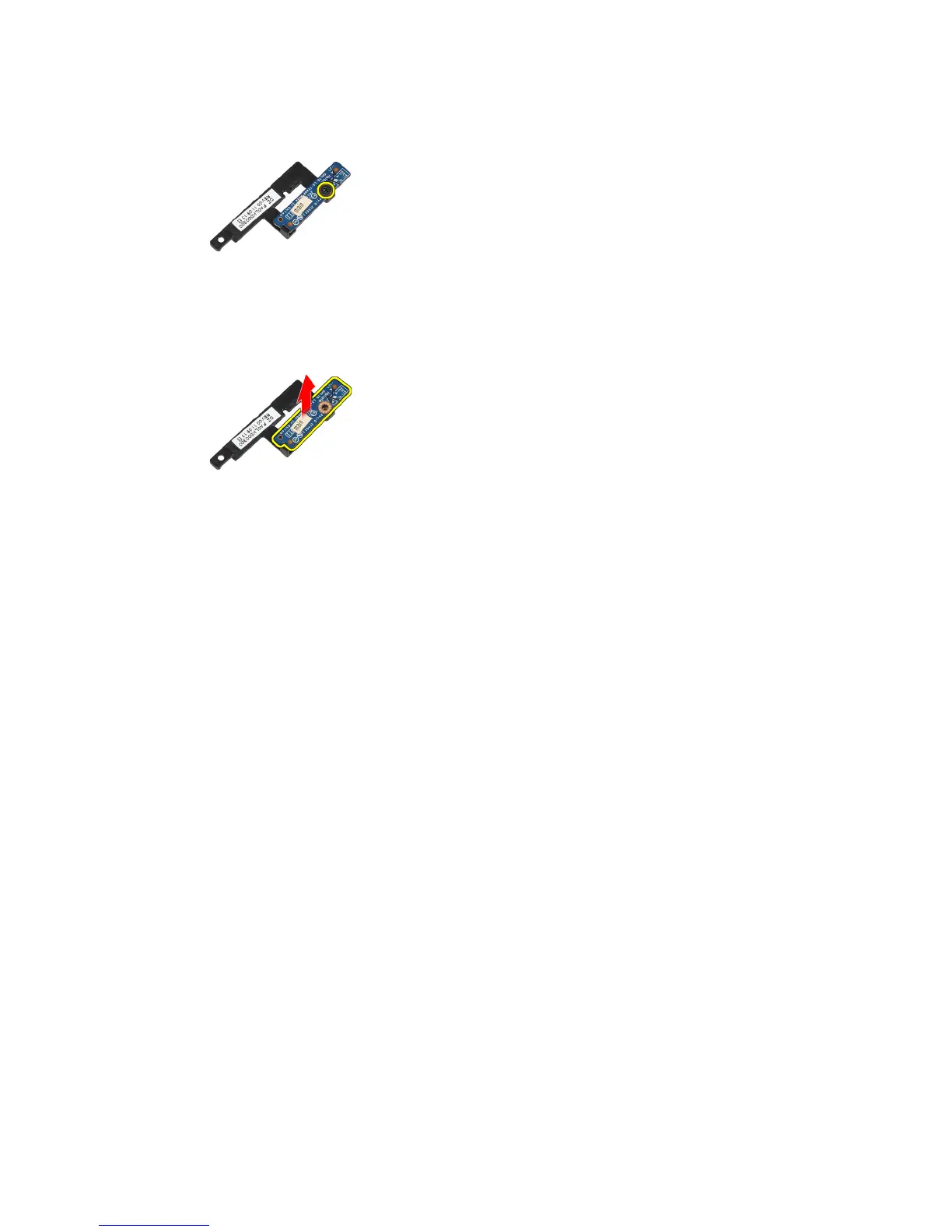

7. Remove the LED board from the LED-board support plate.
Installing the LED Board
1. Tighten the screw to secure the LED board to the LED board support plate.
2. Place the LED board plate in its compartment in the display assembly.
3. Connect the LED board cable to the LED board.
4. Tighten the screw to secure the LED board support plate to the display assembly.
5. Install:
a) display panel
b) display bezel
c) battery
6. Follow the procedures in After Working Inside Your Computer .
Removing the Display-Hinge Walls
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) SD card
b) ExpressCard
c) battery
d) hard drive
e) optical drive
f) base cover
g) keyboard trim
h) keyboard
i) bluetooth module
j) palmrest
