Dell Latitude E6330 - Page 49

k) media board
l) display hinge covers
m) display assembly
n) display bezel
o) display panel
p) power LED board

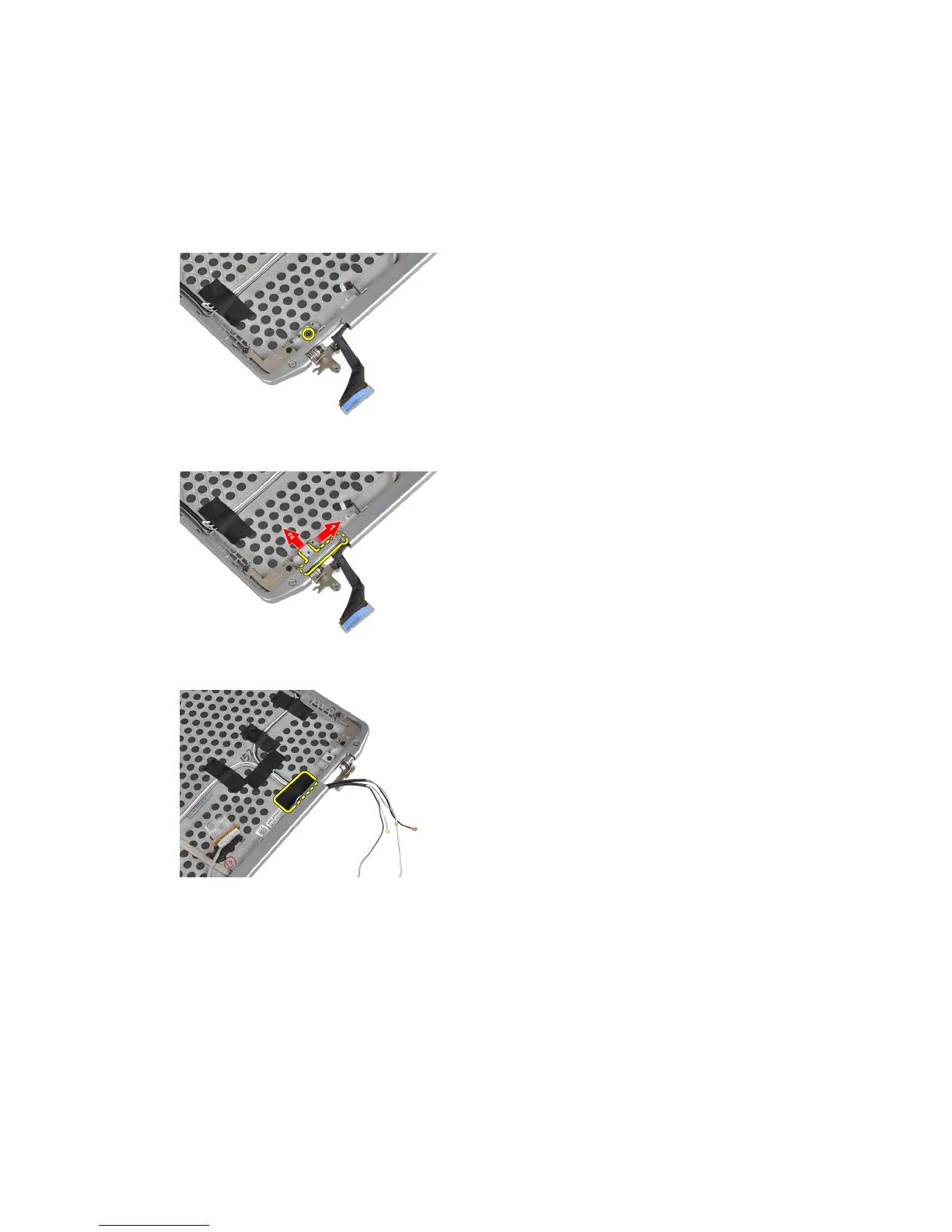

3. Remove the screw that secures the left display-hinge wall to the display assembly.
4. Slide and remove the left display-hinge wall out of the display assembly.
5. Peel off the adhesive tape that secures the antenna cables to the display assembly.
6. Remove the antenna cables from the opening in the right display-hinge wall.
49
