Dell Latitude E6330 - Installing the I;O Board; Removing the Display Bezel

Installing the I/O Board
1. Place the I/O board in its compartment.
2. Tighten the screws to secure the I/O board.
3. Install:
a) system board
b) display assembly
c) display hinge covers
d) media board
e) palmrest
f) bluetooth module
g) keyboard
h) keyboard trim
i) base cover
j) optical drive
k) hard drive
l) battery
m) ExpressCard
n) SD card
4. Follow the procedures in After Working Inside Your Computer .
Removing the Display Bezel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the battery.

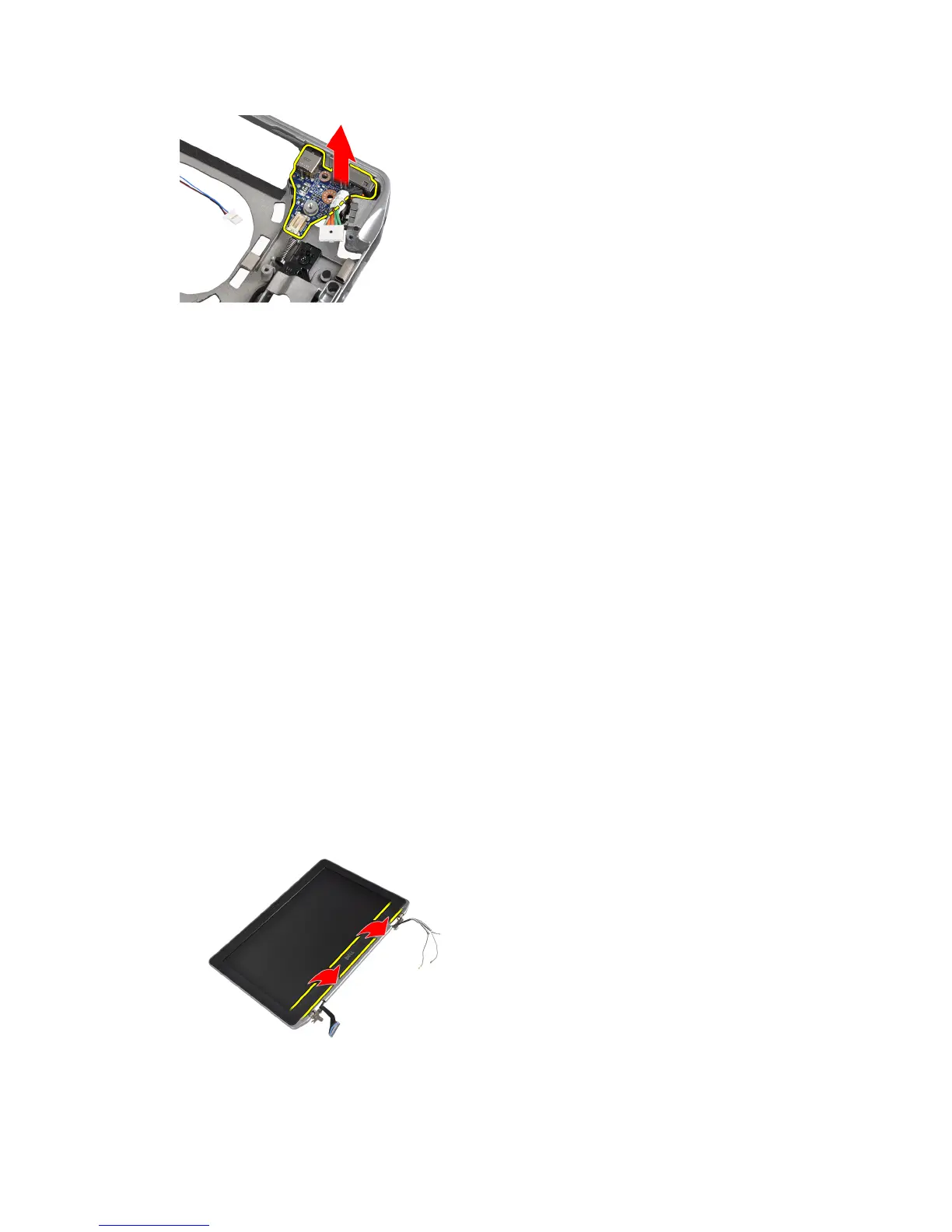

3. Pry up the bottom edge of the display bezel.
4. Pry up the left, right and top edges of the LCD bezel.
