Dell Latitude E6330 - Page 34

a) SD card
b) ExpressCard
c) battery
d) hard drive
e) optical drive
f) base cover
g) keyboard trim
h) keyboard
i) bluetooth module
j) palmrest

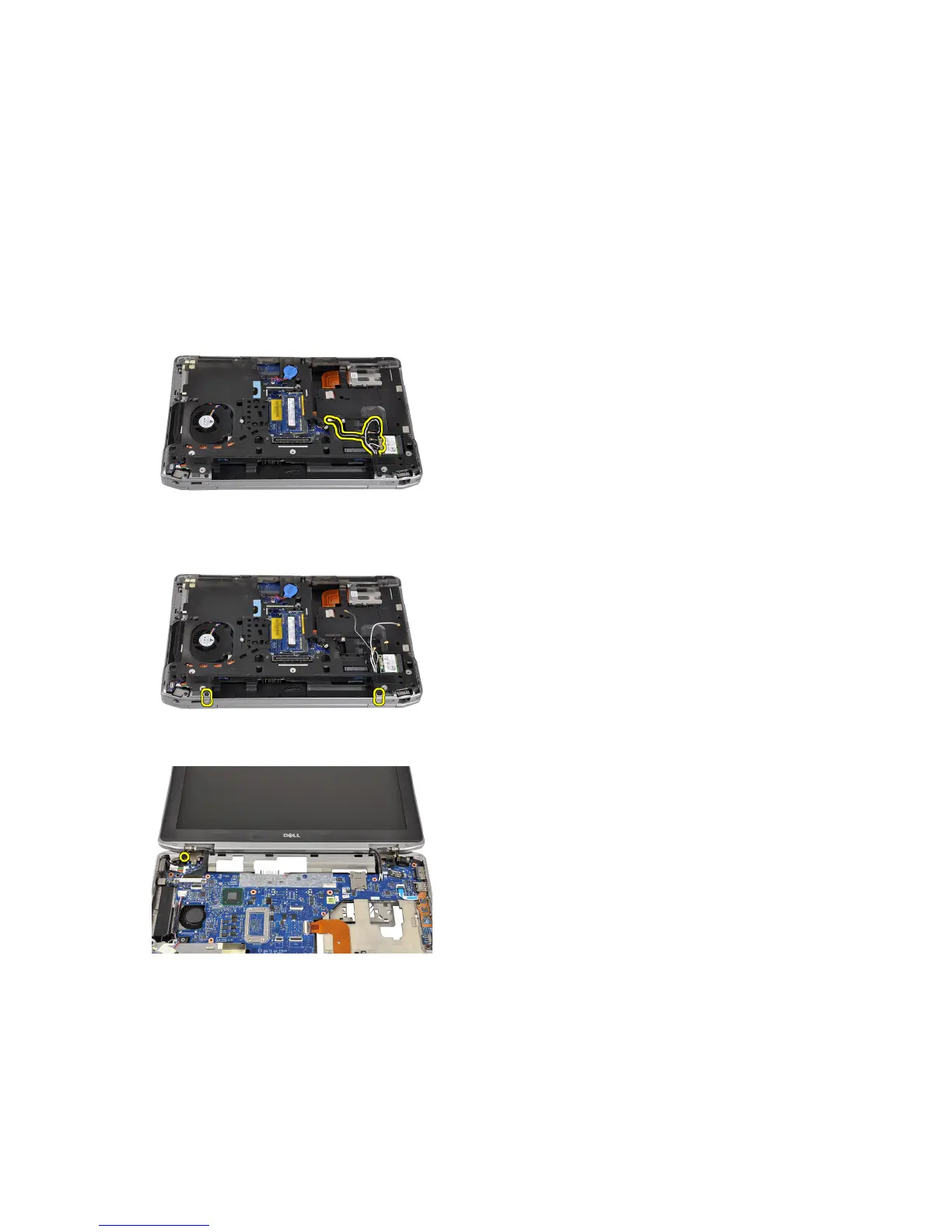

3. Release the antenna cables from their routing on the computer.
4. Remove the screws that secure the display assembly to the computer.
5. Remove the screw that secures the left display hinge to the computer.
6. Remove the screws that secure the Low-Voltage Differential Signaling (LVDS) support bracket.
34
