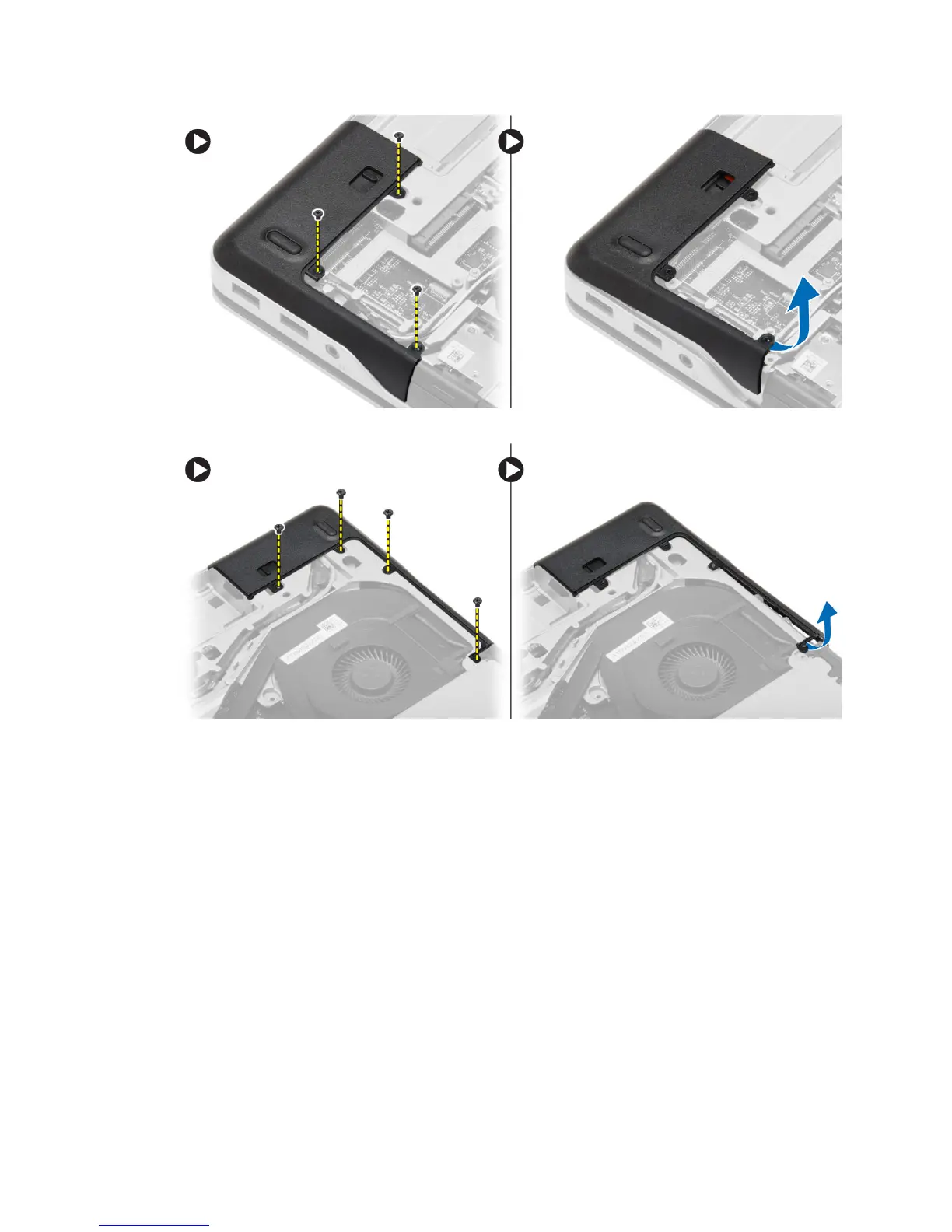

5. Remove the screws that secure the right base corner cap, lift and remove it from the computer.
Installing the Base Corner Caps
1. Place the left and right base corner caps to align with the screw holes on the computer.
2. Tighten the screws to secure the base corner caps to the computer.
3. Install:
a) base cover
b) battery
4. Follow the procedures in
After Working Inside Your Computer
.
Removing the Memory
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) base cover
18
