Installing the Coin-Cell Battery
1. Place the coin-cell battery in its slot.
2. Connect the coin-cell battery cable to the system board.
3. Install:
a) base cover
b) battery
4. Follow the procedures in
After Working Inside Your Computer
.
Removing the Power Connector
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) base corner cap (right)
c) base cover

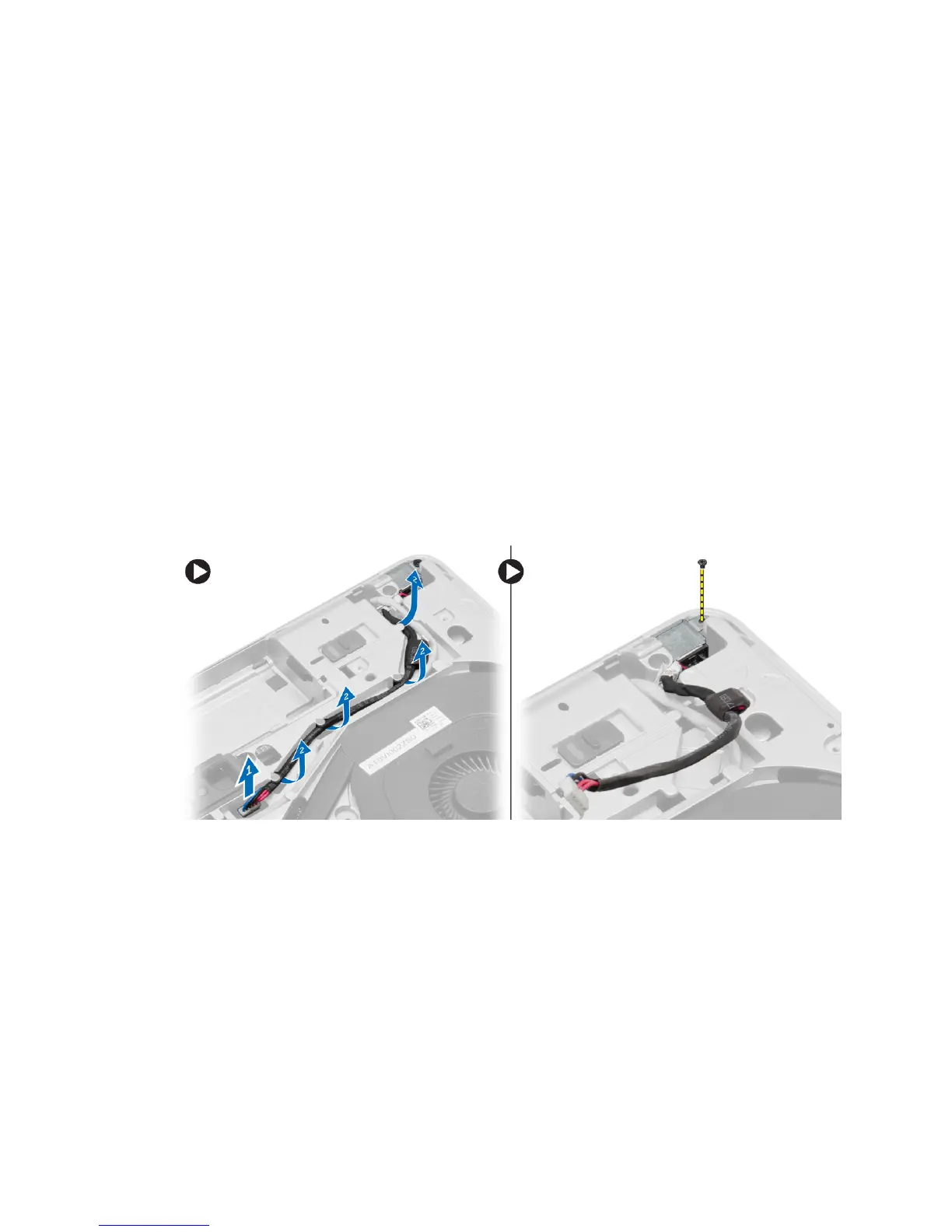

3. Perform the following steps as shown in the illustration:
a) Disconnect the power-connector cable.
b) Release the power-connector cable from the routing channel.
c) Remove the screw that secures the power-connector bracket to the computer.
4. Lift the power-connector bracket from the computer. Lift the power connector from the computer.
