Dell Latitude E6540 - Removing the System Board

b) ExpressCard
c) battery
d) keyboard
e) display-hinge cap
f) base cover
g) base corner caps
h) palmrest assembly

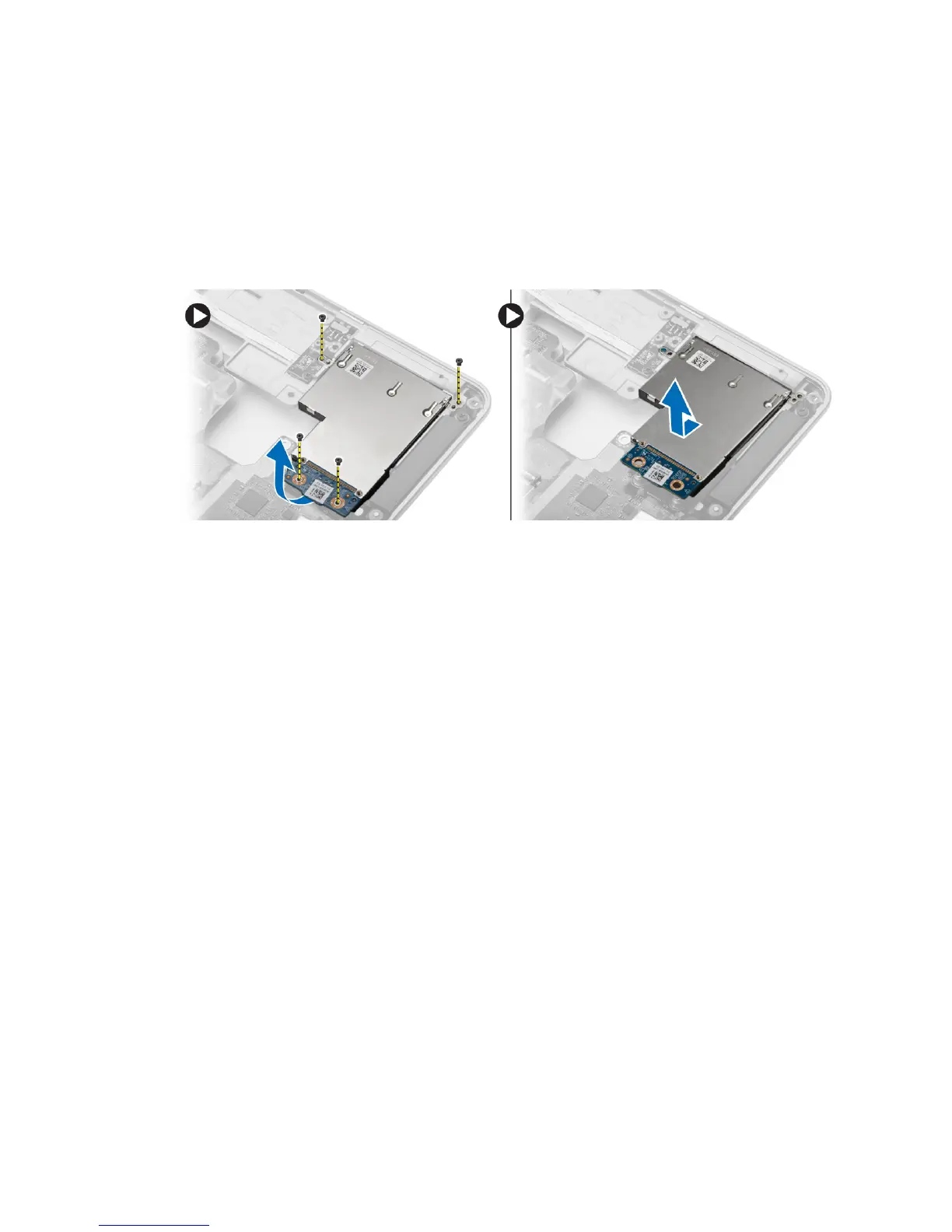

3. Remove the screws that secure the ExpressCard cage to the computer. Remove the ExpressCard cage from the
computer.
Installing the ExpressCard Cage
1. Place the ExpressCard cage in its slot.
2. Tighten the screws to secure the ExpressCard cage to the computer.
3. Install:
a) palmrest assembly
b) base corner caps
c) base cover
d) display-hinge cap
e) keyboard
f) battery
g) ExpressCard
h) SD Card
4. Follow the procedures in After Working Inside Your Computer .
Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) SD Card
b) ExpressCard
c) battery
d) keyboard
e) hard drive
f) optical drive
g) display-hinge cap
36
