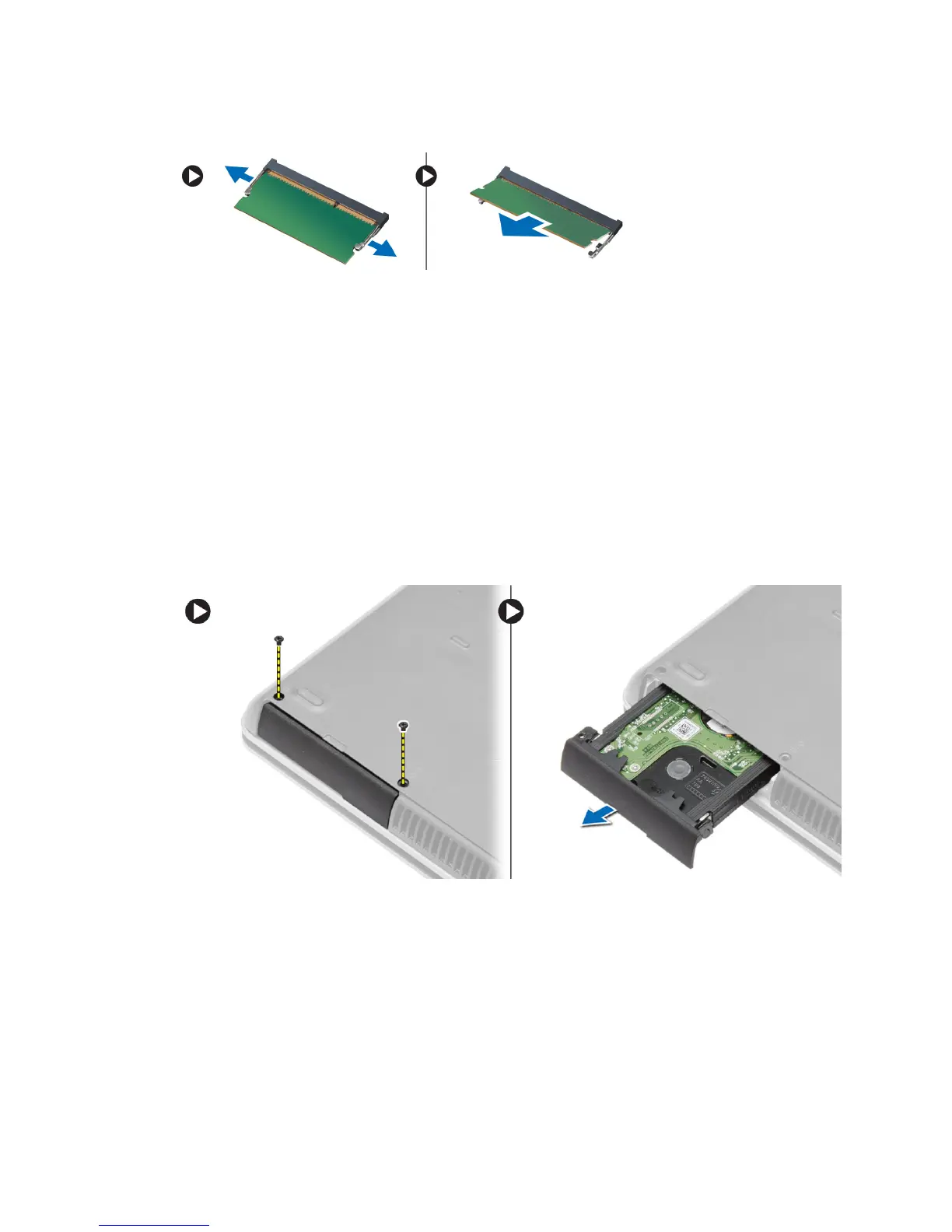

3. Pry the securing clips away from the memory module until it pops-up and remove the memory module from its
connector on the system board.
Installing the Memory
1. Insert the memory into the memory socket.
2. Press the securing clips to secure the memory module to the system board.
3. Install:
a) base cover
b) battery
4. Follow the procedures in
After Working Inside Your Computer
.
Removing the Hard Drive
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the battery.
3. Remove the screws that secure the hard drive to the computer. Slide the hard drive out of the computer.
4. Remove the screw that secures the hard-drive caddy to the hard drive. Remove the hard-drive caddy from the hard
drive.
19
