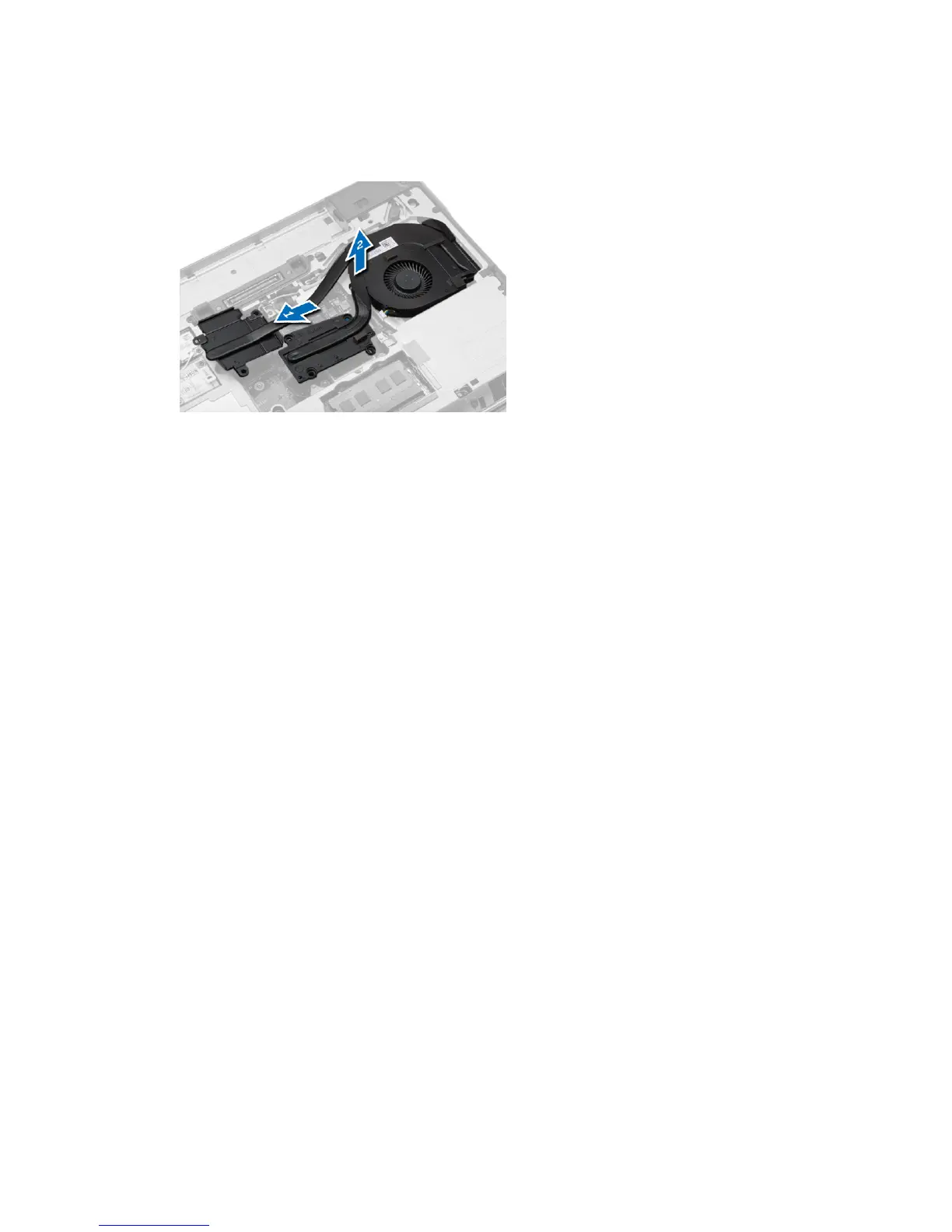

4. Perform the following steps as shown in the illustration:
a) Slide the heat-sink assembly.
b) Lift the heat-sink assembly from the computer.
Installing the Heat-Sink Assembly
1. Slide the heat-sink assembly to its position on the system board.
2. Tighten the screws to secure the heat-sink assembly to the system board.
3. Connect the fan cable to the system board.
4. Install:
a) base cover
b) battery
5. Follow the procedures in
After Working Inside Your Computer
.
Removing the Processor
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) base cover
c) heat-sink assembly
3. Rotate the processor-cam lock in a counter-clockwise direction. Remove the processor from the computer.
