Installing the Display Bezel
1. Place the display bezel onto the display assembly.
2. Starting from the top corner, press on the display bezel and work around the entire bezel until it clicks onto the
display assembly.
3. Press on the left and right edges of the display bezel.
4. Install:
a) display assembly
b) base corner caps
c) base cover
d) display-hinge cap
e) battery
5. Follow the procedures in
After Working Inside Your Computer
.

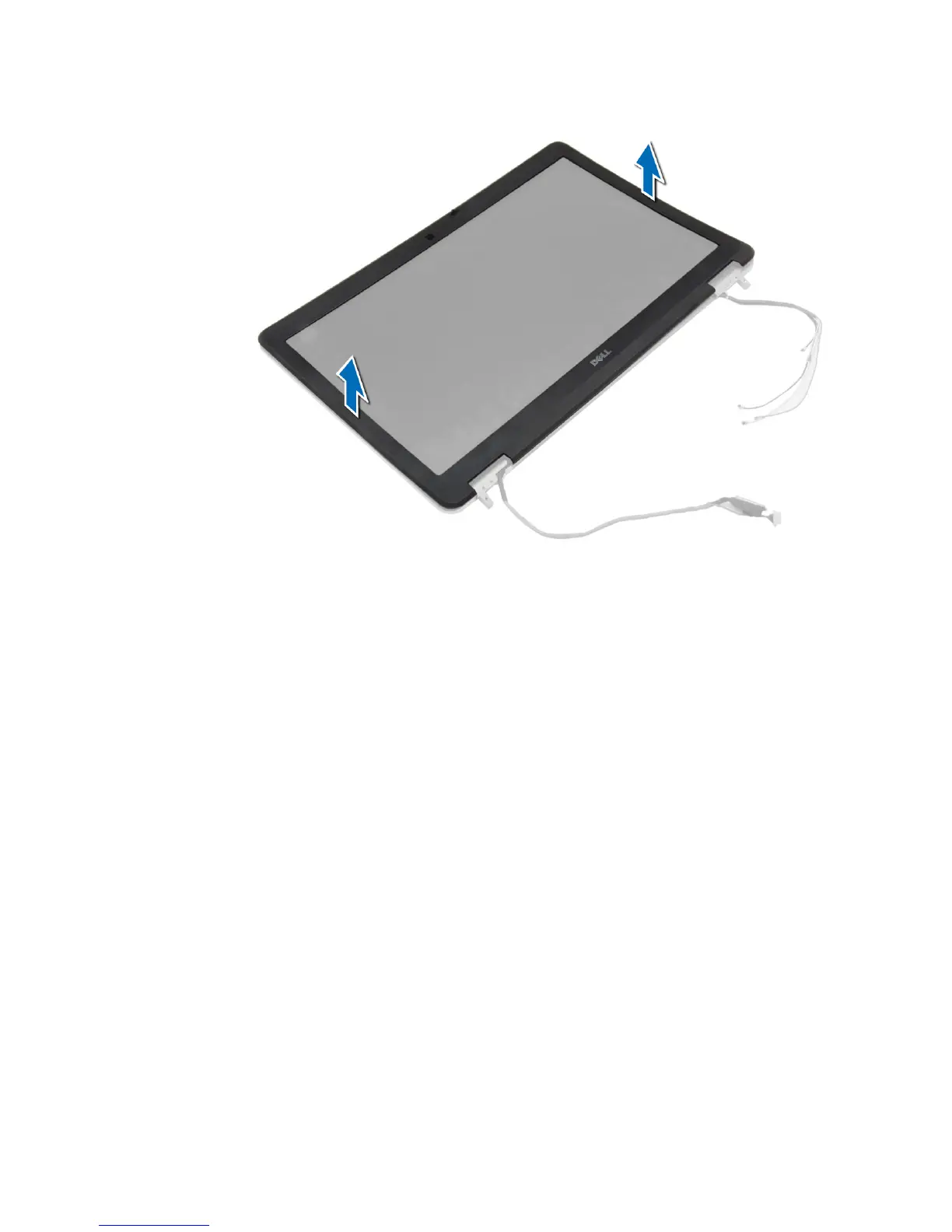

Removing the Display Panel
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) display-hinge cap
c) base cover
d) base corner caps
e) display assembly
f) display bezel
49
