Removing the VGA Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) SD Card
b) ExpressCard
c) battery
d) keyboard
e) display-hinge cap
f) base cover
g) base corner caps
h) palmrest assembly

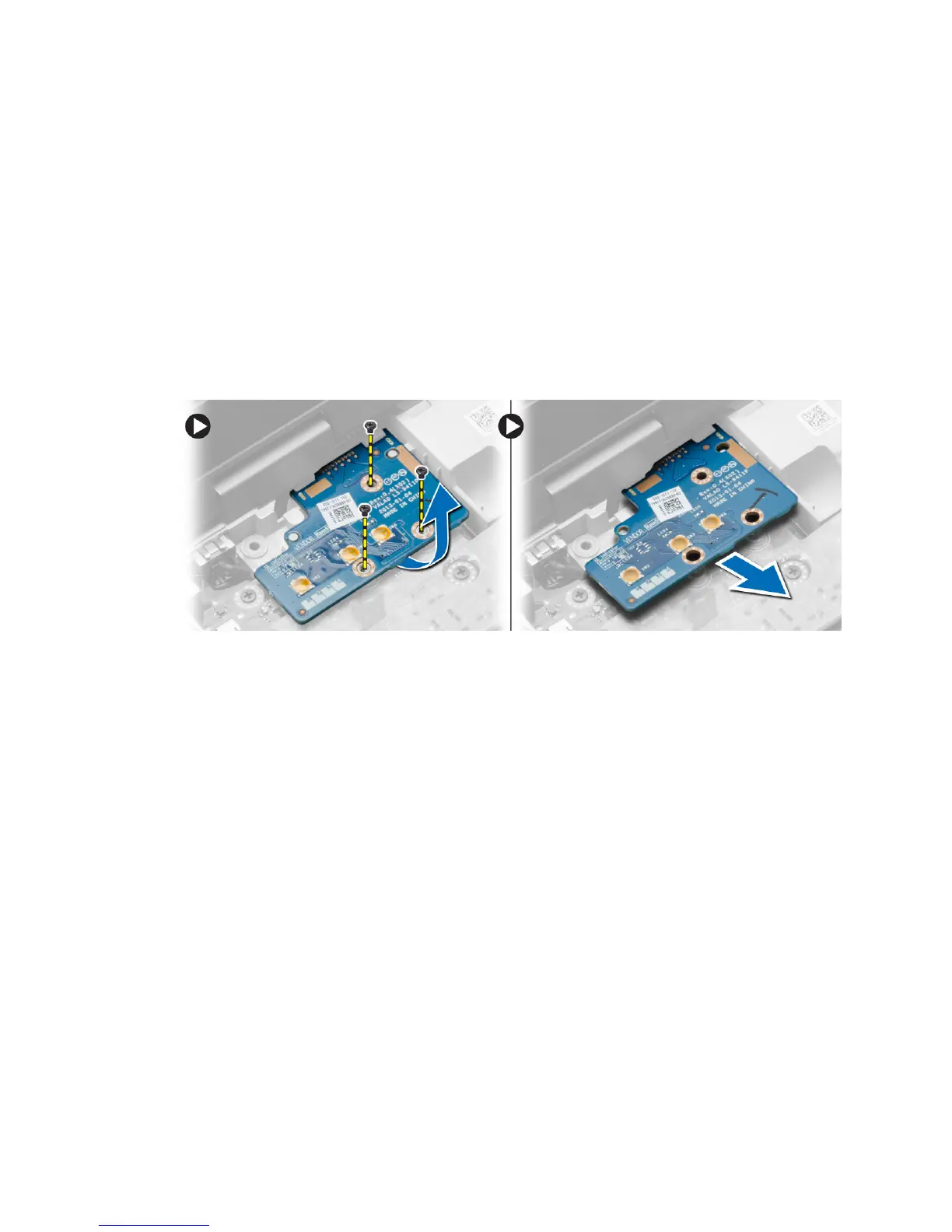

3. Remove the screws that secure the VGA board to the computer and remove it from its connector.
Installing the VGA Board
1. Insert the VGA board in its slot
2. Tighten the screws to secure the VGA board to the computer.
3. Install:
a) palmrest assembly
b) base corner caps
c) base cover
d) display-hinge cap
e) keyboard
f) battery
g) ExpressCard
h) SD Card
4. Follow the procedures in After Working Inside Your Computer .
Removing the ExpressCard Cage
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) SD Card
